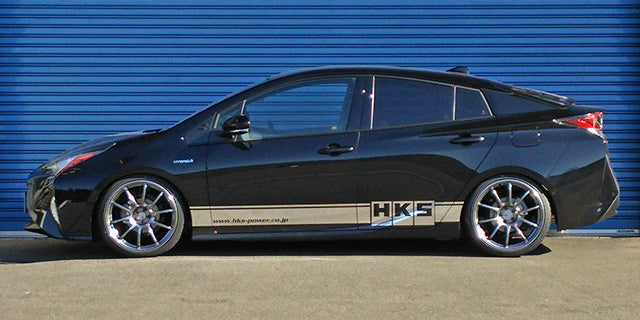

HKS Hipermax S Coilovers Toyota Prius (ZVW50) / Toyota Prius (ZVW51) / Toyota Prius (ZVW55) 80330-AT045
2 097 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80330-AT045
FITMENT Toyota Prius (ZVW50) 2015-2022 Toyota Prius (ZVW51) 2015-2022 Toyota Prius (ZVW55) 2015-2022
GENERAL FEATURES Series - S Toyota Prius (ZVW50) - Engine - 2ZR-FXE(2ZR-1NM) / Make to order item 2WD. Vehicle height data is measured on ZVW51. Toyota Prius (ZVW51) - Engine - 2ZR-FXE(2ZR-1NM) / Make to order item 2WD Toyota Prius (ZVW55) - Engine - 2ZR-FXE(2ZR-1NM) / Make to order item 4WD
FRONT FEATURES Toyota Prius (ZVW50) - Spring rate N/mm (kgf/mm) - 39(4) Toyota Prius (ZVW50) - Spring free height, mm - 220(Barrel) Toyota Prius (ZVW50) - Damping force at 0.1 m/s, rebound/compression, N - 324/137 Toyota Prius (ZVW50) - Vehicle height (highest - lowest), mm - -27(-3 - -56) Toyota Prius (ZVW51) - Spring rate N/mm (kgf/mm) - 39(4) Toyota Prius (ZVW51) - Spring free height, mm - 220(Barrel) Toyota Prius (ZVW51) - Damping force at 0.1 m/s, rebound/compression, N - 324/137 Toyota Prius (ZVW51) - Vehicle height (highest - lowest), mm - -27(-3 - -56) Toyota Prius (ZVW55) - Spring rate N/mm (kgf/mm) - 39(4) Toyota Prius (ZVW55) - Spring free height, mm - 220(Barrel) Toyota Prius (ZVW55) - Damping force at 0.1 m/s, rebound/compression, N - 324/137 Toyota Prius (ZVW55) - Vehicle height (highest - lowest), mm - -35(-11 - -64)
REAR FEATURES Toyota Prius (ZVW50) - Spring rate N/mm (kgf/mm) - 39(4) Toyota Prius (ZVW50) - Spring free height, mm - 250(Barrel) Toyota Prius (ZVW50) - Damping force at 0.1 m/s, rebound/compression, N - 326/137 Toyota Prius (ZVW50) - Vehicle height (highest - lowest), mm - -32(0 - -51) Toyota Prius (ZVW51) - Spring rate N/mm (kgf/mm) - 39(4) Toyota Prius (ZVW51) - Spring free height, mm - 250(Barrel) Toyota Prius (ZVW51) - Damping force at 0.1 m/s, rebound/compression, N - 326/137 Toyota Prius (ZVW51) - Vehicle height (highest - lowest), mm - -32(0 - -51) Toyota Prius (ZVW55) - Spring rate N/mm (kgf/mm) - 39(4) Toyota Prius (ZVW55) - Spring free height, mm - 250(Barrel) Toyota Prius (ZVW55) - Damping force at 0.1 m/s, rebound/compression, N - 326/137 Toyota Prius (ZVW55) - Vehicle height (highest - lowest), mm - -35(-13 - -46)
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AT045.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
