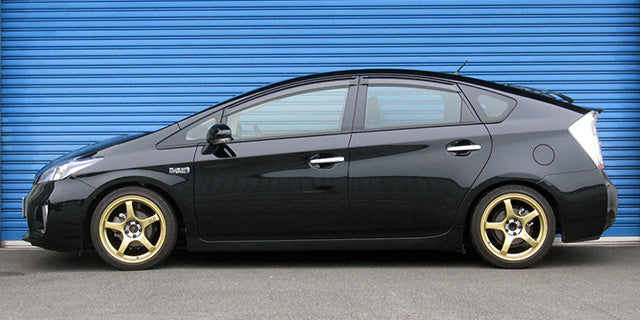

HKS Hipermax S Coilovers Toyota Prius (ZVW30) / Toyota Prius Phv (ZVW35) 80330-AT039

80330-AT039

FITMENT
Toyota Prius (ZVW30) 2009-2015
Toyota Prius Phv (ZVW35) 2012-2016

GENERAL FEATURES
Series - S
Toyota Prius (ZVW30) - Engine - 2ZR-FXE(2ZR-3JM) / Make to order item Data for "G Touring Selection" model
Toyota Prius Phv (ZVW35) - Engine - 2ZR-FXE(2ZR-3JM) / Make to order item

FRONT FEATURES
Toyota Prius (ZVW30) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Prius (ZVW30) - Spring free height, mm - 250(Barrel)
Toyota Prius (ZVW30) - Damping force at 0.1 m/s, rebound/compression, N - 407/201
Toyota Prius (ZVW30) - Vehicle height (highest - lowest), mm - -37(0 - -59)
Toyota Prius Phv (ZVW35) - Spring rate N/mm (kgf/mm) - 39(4)
Toyota Prius Phv (ZVW35) - Spring free height, mm - 250(Barrel)
Toyota Prius Phv (ZVW35) - Damping force at 0.1 m/s, rebound/compression, N - 407/201
Toyota Prius Phv (ZVW35) - Vehicle height (highest - lowest), mm - -37(0 - -59)

REAR FEATURES
Toyota Prius (ZVW30) - Spring rate N/mm (kgf/mm) - 31(3.2)
Toyota Prius (ZVW30) - Spring free height, mm - Special
Toyota Prius (ZVW30) - Damping force at 0.1 m/s, rebound/compression, N - 196/132
Toyota Prius (ZVW30) - Vehicle height (highest - lowest), mm - -44(-15 - -78)
Toyota Prius Phv (ZVW35) - Spring rate N/mm (kgf/mm) - 31(3.2)
Toyota Prius Phv (ZVW35) - Spring free height, mm - Special
Toyota Prius Phv (ZVW35) - Damping force at 0.1 m/s, rebound/compression, N - 196/132
Toyota Prius Phv (ZVW35) - Vehicle height (highest - lowest), mm - -67(-38 - -101)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT039.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
