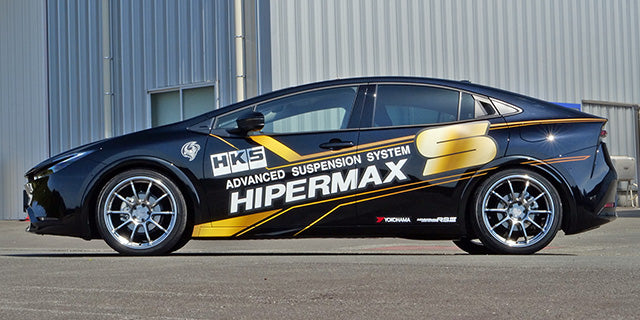

HKS Hipermax S Coilovers Toyota Prius (MXWH60) 80330-AT029

80330-AT029

FITMENT
Toyota Prius (MXWH60) 2022-

GENERAL FEATURES
Series - S
Toyota Prius (MXWH60) - Engine - M20A-FXS / Make to order item Developed on 2.0L Hybrid 2WD. E-Four, 1.8L Hybrid, and PHEV models are unverified.

FRONT FEATURES
Toyota Prius (MXWH60) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Prius (MXWH60) - Spring free height, mm - 200(Barrel)
Toyota Prius (MXWH60) - Damping force at 0.1 m/s, rebound/compression, N - 481/412
Toyota Prius (MXWH60) - Vehicle height (highest - lowest), mm - -33(0 - -59)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 49 ( 5.0 )
Free height (mm) - 200
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - +10 ( 1 )
Damping force (Rebound/Damping)N* - 481 / 412
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 54 / 62

REAR FEATURES
Toyota Prius (MXWH60) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota Prius (MXWH60) - Spring free height, mm - 220(Barrel)
Toyota Prius (MXWH60) - Damping force at 0.1 m/s, rebound/compression, N - 382/471
Toyota Prius (MXWH60) - Vehicle height (highest - lowest), mm - -29(0 - -49)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 59 ( 6.0 )
Free height (mm) - 220
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 382 / 471
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 52 / 52

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT029.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
