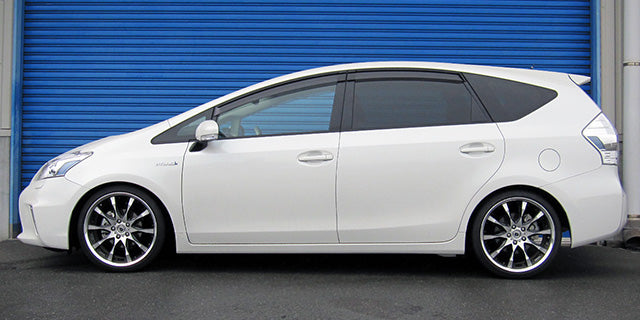

HKS Hipermax S Coilovers Toyota Prius Α (ZVW40W) / Toyota Prius Α (ZVW41W) 80330-AT040
1 925 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80330-AT040
FITMENT Toyota Prius Α (ZVW40W) 2011-2021 Toyota Prius Α (ZVW41W) 2011-2021
GENERAL FEATURES Series - S Toyota Prius Α (ZVW40W) - Engine - 2ZR-FXE(2ZR-5JM) / Make to order item Data for 7-passenger capacity model. Toyota Prius Α (ZVW41W) - Engine - 2ZR-FXE(2ZR-5JM) / Make to order item
FRONT FEATURES Toyota Prius Α (ZVW40W) - Spring rate N/mm (kgf/mm) - 39(4) Toyota Prius Α (ZVW40W) - Spring free height, mm - 250(Barrel) Toyota Prius Α (ZVW40W) - Damping force at 0.1 m/s, rebound/compression, N - 348/187 Toyota Prius Α (ZVW40W) - Vehicle height (highest - lowest), mm - -40(-5 - -72) Toyota Prius Α (ZVW41W) - Spring rate N/mm (kgf/mm) - 39(4) Toyota Prius Α (ZVW41W) - Spring free height, mm - 250(Barrel) Toyota Prius Α (ZVW41W) - Damping force at 0.1 m/s, rebound/compression, N - 348/187 Toyota Prius Α (ZVW41W) - Vehicle height (highest - lowest), mm - -36(-1 - -68)
REAR FEATURES Toyota Prius Α (ZVW40W) - Spring rate N/mm (kgf/mm) - 34(3.5) Toyota Prius Α (ZVW40W) - Spring free height, mm - Special Toyota Prius Α (ZVW40W) - Damping force at 0.1 m/s, rebound/compression, N - 255/162 Toyota Prius Α (ZVW40W) - Vehicle height (highest - lowest), mm - -38(-26 - -64) Toyota Prius Α (ZVW41W) - Spring rate N/mm (kgf/mm) - 34(3.5) Toyota Prius Α (ZVW41W) - Spring free height, mm - Special Toyota Prius Α (ZVW41W) - Damping force at 0.1 m/s, rebound/compression, N - 255/162 Toyota Prius Α (ZVW41W) - Vehicle height (highest - lowest), mm - -35(-23 - -61)
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AT040.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
