HKS Hipermax S Coilovers Toyota Mark X Grmn (GRX133 KAI) 80330-AT026
2 011 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80330-AT026

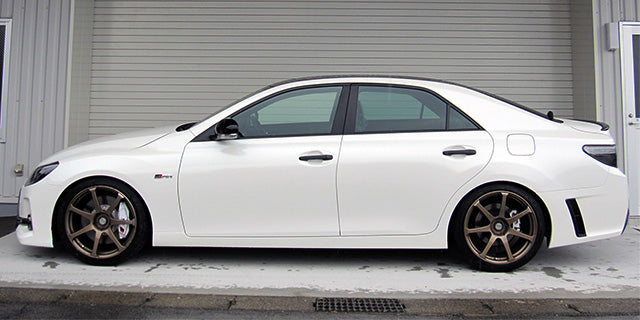

FITMENT Toyota Mark X Grmn (GRX133 KAI) 2019-2019
GENERAL FEATURES Series - S Toyota Mark X Grmn (GRX133 KAI) - Engine - 2GR-FSE / Make to order item Not tested on "GR SPORT" grade model. Additional manufacturer specification data follows below.
FRONT FEATURES Toyota Mark X Grmn (GRX133 KAI) - Spring rate N/mm (kgf/mm) - 138(14) Toyota Mark X Grmn (GRX133 KAI) - Spring free height, mm - 200 Toyota Mark X Grmn (GRX133 KAI) - Damping force at 0.1 m/s, rebound/compression, N - 1500/460 Toyota Mark X Grmn (GRX133 KAI) - Vehicle height (highest - lowest), mm - -12(0 - -41) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Rubber Inverted/Normal type - Normal Damper/Spring layout - Coilover Spring rate change at factory - Possible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 137 ( 14.0 ) Free height (mm) - 200 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - -20 ( 2 ) Damping force (Rebound/Damping)N* - 1500 / 460 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 67 / 39
REAR FEATURES Toyota Mark X Grmn (GRX133 KAI) - Spring rate N/mm (kgf/mm) - 98(10) Toyota Mark X Grmn (GRX133 KAI) - Spring free height, mm - 220(Barrel) Toyota Mark X Grmn (GRX133 KAI) - Damping force at 0.1 m/s, rebound/compression, N - 1000/420 Toyota Mark X Grmn (GRX133 KAI) - Vehicle height (highest - lowest), mm - -15(0 - -69) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Rubber Inverted/Normal type - Normal Damper/Spring layout - Coilover Spring rate change at factory - Possible Damping force adjustment with wire - Yes Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 98 ( 10.0 ) Free height (mm) - 220 Spring type - Straight Barrel type Recommended range to change spring rate N/mm(kgf/mm) - -10 ( 1 ) Damping force (Rebound/Damping)N* - 1000 / 420 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 79 / 70
Remarks
Not tested on "GR SPORT" grade model.
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AT026.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
