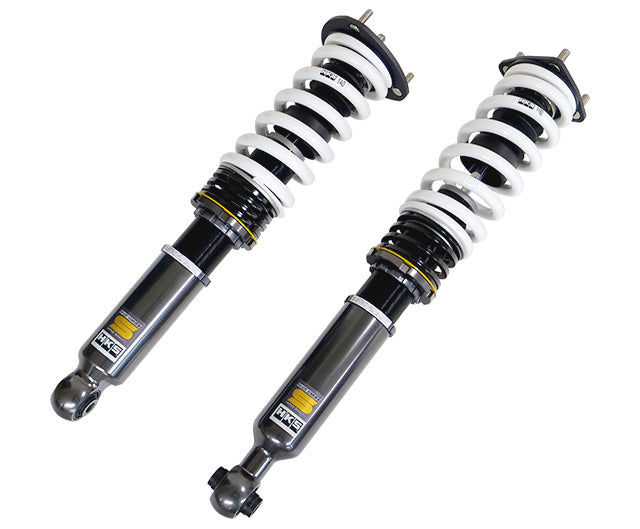

HKS Hipermax S Coilovers Toyota Verossa (JZX110) / Toyota Verossa (GX110) / Toyota Mark Ii (JZX110) / Toyota Mark Ii (GX110) 80330-AT008

80330-AT008

FITMENT
Toyota Verossa (JZX110) 2001-2004
Toyota Verossa (GX110) 2001-2004
Toyota Mark Ii (JZX110) 2000-2004
Toyota Mark Ii (GX110) 2000-2004

GENERAL FEATURES
Series - S
Toyota Verossa (JZX110) - Engine - 1JZ-GTE
Toyota Verossa (GX110) - Engine - 1G-FE / Vehicle height data is measured on JZX110.
Toyota Mark Ii (JZX110) - Engine - 1JZ-GTE
Toyota Mark Ii (JZX110) - Engine - 1JZ-FSE
Toyota Mark Ii (GX110) - Engine - 1G-FE / The model in the photo is JZX110.

FRONT FEATURES
Toyota Verossa (JZX110) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Verossa (JZX110) - Spring free height, mm - 200
Toyota Verossa (JZX110) - Damping force at 0.1 m/s, rebound/compression, N - 863/657
Toyota Verossa (JZX110) - Vehicle height (highest - lowest), mm - -48(0 - -87)
Toyota Verossa (GX110) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Verossa (GX110) - Spring free height, mm - 200
Toyota Verossa (GX110) - Damping force at 0.1 m/s, rebound/compression, N - 863/657
Toyota Verossa (GX110) - Vehicle height (highest - lowest), mm - -48(0 - -87)
Toyota Mark Ii (JZX110) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Mark Ii (JZX110) - Spring free height, mm - 200
Toyota Mark Ii (JZX110) - Damping force at 0.1 m/s, rebound/compression, N - 863/657
Toyota Mark Ii (JZX110) - Vehicle height (highest - lowest), mm - -48(0 - -87)
Toyota Mark Ii (GX110) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Mark Ii (GX110) - Spring free height, mm - 200
Toyota Mark Ii (GX110) - Damping force at 0.1 m/s, rebound/compression, N - 863/657
Toyota Mark Ii (GX110) - Vehicle height (highest - lowest), mm - -48(0 - -87)

REAR FEATURES
Toyota Verossa (JZX110) - Spring rate N/mm (kgf/mm) - 98(10)
Toyota Verossa (JZX110) - Spring free height, mm - 220(Barrel)
Toyota Verossa (JZX110) - Damping force at 0.1 m/s, rebound/compression, N - 677/481
Toyota Verossa (JZX110) - Vehicle height (highest - lowest), mm - -54(0 - -112)
Toyota Verossa (GX110) - Spring rate N/mm (kgf/mm) - 98(10)
Toyota Verossa (GX110) - Spring free height, mm - 220(Barrel)
Toyota Verossa (GX110) - Damping force at 0.1 m/s, rebound/compression, N - 677/481
Toyota Verossa (GX110) - Vehicle height (highest - lowest), mm - -54(0 - -112)
Toyota Mark Ii (JZX110) - Spring rate N/mm (kgf/mm) - 98(10)
Toyota Mark Ii (JZX110) - Spring free height, mm - 220(Barrel)
Toyota Mark Ii (JZX110) - Damping force at 0.1 m/s, rebound/compression, N - 677/481
Toyota Mark Ii (JZX110) - Vehicle height (highest - lowest), mm - -54(0 - -112)
Toyota Mark Ii (GX110) - Spring rate N/mm (kgf/mm) - 98(10)
Toyota Mark Ii (GX110) - Spring free height, mm - 220(Barrel)
Toyota Mark Ii (GX110) - Damping force at 0.1 m/s, rebound/compression, N - 677/481
Toyota Mark Ii (GX110) - Vehicle height (highest - lowest), mm - -54(0 - -112)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT008.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.

Manufacturer product details.
