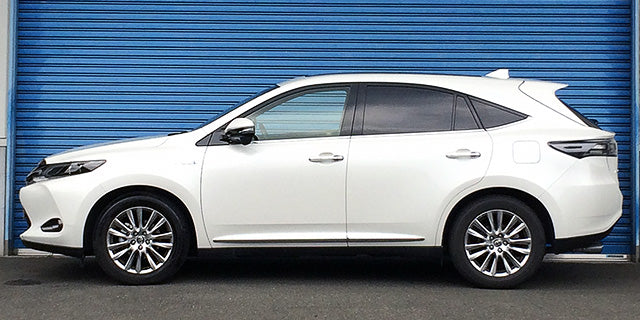

HKS Hipermax S Coilovers Toyota Harrier (AVU65W) 80330-AT044

80330-AT044

FITMENT
Toyota Harrier (AVU65W) 2014-2020

GENERAL FEATURES
Series - S
Toyota Harrier (AVU65W) - Engine - 2AR-FXE(2AR-2JM) / Make to order item

FRONT FEATURES
Toyota Harrier (AVU65W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Harrier (AVU65W) - Spring free height, mm - 250(Barrel)
Toyota Harrier (AVU65W) - Damping force at 0.1 m/s, rebound/compression, N - 402/167
Toyota Harrier (AVU65W) - Vehicle height (highest - lowest), mm - -28(0 - -49)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 49 ( 5.0 )
Free height (mm) - 250
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - ±10 ( 1 )
Damping force (Rebound/Damping)N* - 402 / 167
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 67 / 59

REAR FEATURES
Toyota Harrier (AVU65W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Harrier (AVU65W) - Spring free height, mm - 220(Barrel)
Toyota Harrier (AVU65W) - Damping force at 0.1 m/s, rebound/compression, N - 539/157
Toyota Harrier (AVU65W) - Vehicle height (highest - lowest), mm - -29(0 - -61)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 69 ( 7.0 )
Free height (mm) - 220
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - ±10 ( 1 )
Damping force (Rebound/Damping)N* - 539 / 157
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 43 / 54

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT044.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
