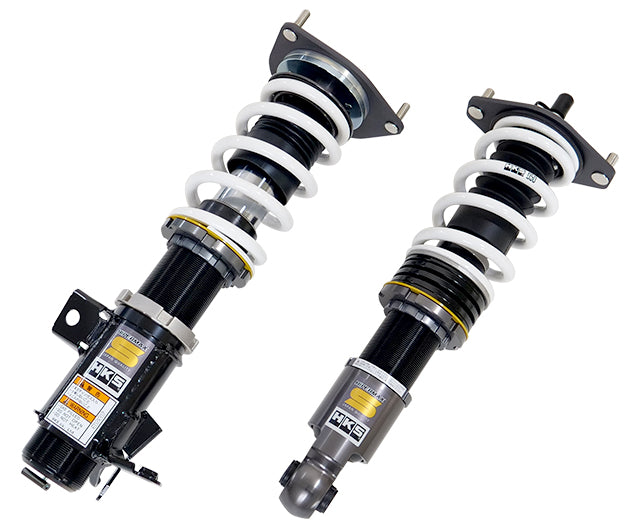

HKS Hipermax S Coilovers Toyota 86 (ZN6) / Subaru BRZ (ZC6) 80330-AT001P

80330-AT001P

FITMENT
Toyota 86 (ZN6) 2012-2021
Subaru BRZ (ZC6) 2012-2021

GENERAL FEATURES
Series - S
Toyota 86 (ZN6) - Engine - FA20 / Front Upper Mount Pillow ball type
Subaru BRZ (ZC6) - Engine - FA20 / Front Upper Mount Pillow ball type. Vehicle height data is measured on ZN6.

FRONT FEATURES
Toyota 86 (ZN6) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota 86 (ZN6) - Spring free height, mm - 170(Barrel)
Toyota 86 (ZN6) - Damping force at 0.1 m/s, rebound/compression, N - 402/304
Toyota 86 (ZN6) - Vehicle height (highest - lowest), mm - -16(0 - -46)
Subaru BRZ (ZC6) - Spring rate N/mm (kgf/mm) - 49(5)
Subaru BRZ (ZC6) - Spring free height, mm - 170(Barrel)
Subaru BRZ (ZC6) - Damping force at 0.1 m/s, rebound/compression, N - 402/304
Subaru BRZ (ZC6) - Vehicle height (highest - lowest), mm - -16(0 - -46)

REAR FEATURES
Toyota 86 (ZN6) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota 86 (ZN6) - Spring free height, mm - 170(Barrel)
Toyota 86 (ZN6) - Damping force at 0.1 m/s, rebound/compression, N - 338/294
Toyota 86 (ZN6) - Vehicle height (highest - lowest), mm - -12(0 - -40)
Subaru BRZ (ZC6) - Spring rate N/mm (kgf/mm) - 49(5)
Subaru BRZ (ZC6) - Spring free height, mm - 170(Barrel)
Subaru BRZ (ZC6) - Damping force at 0.1 m/s, rebound/compression, N - 338/294
Subaru BRZ (ZC6) - Vehicle height (highest - lowest), mm - -12(0 - -40)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT001P.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
