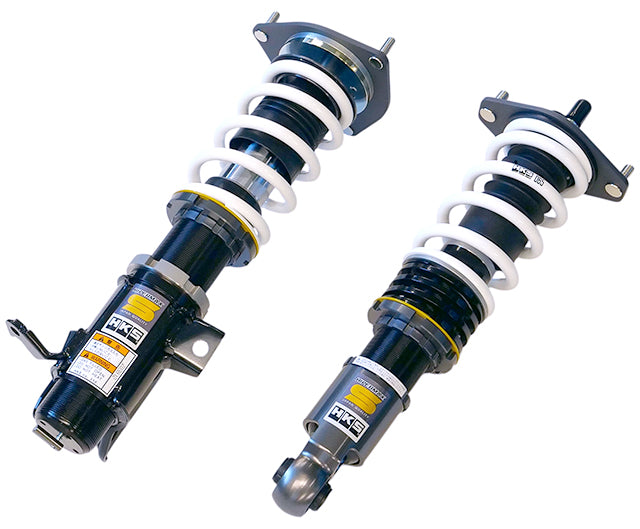

HKS Hipermax S Coilovers Toyota Gr86 (ZN8) 80330-AT027P

80330-AT027P

FITMENT
Toyota Gr86 (ZN8) 2021-

GENERAL FEATURES
Series - S
Toyota Gr86 (ZN8) - Engine - FA24 / Vehicle height data is measured on MT models only. Front suspension features pillow-ball upper mounts.
Additional manufacturer specification data follows below.

FRONT FEATURES
Toyota Gr86 (ZN8) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Gr86 (ZN8) - Spring free height, mm - 170(Barrel)
Toyota Gr86 (ZN8) - Damping force at 0.1 m/s, rebound/compression, N - 397/402
Toyota Gr86 (ZN8) - Vehicle height (highest - lowest), mm - -24(0 - -46)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 49 ( 5.0 )
Free height (mm) - 170
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - ±10 ( 1 )※
Damping force (Rebound/Damping)N* - 397 / 402
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 42 / 57

REAR FEATURES
Toyota Gr86 (ZN8) - Spring rate N/mm (kgf/mm) - 64(6.5)
Toyota Gr86 (ZN8) - Spring free height, mm - 170(Barrel)
Toyota Gr86 (ZN8) - Damping force at 0.1 m/s, rebound/compression, N - 407/387
Toyota Gr86 (ZN8) - Vehicle height (highest - lowest), mm - -22(0 - -58)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 64 ( 6.5 )
Free height (mm) - 170
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - ±15(1.5)※
Damping force (Rebound/Damping)N* - 407 / 387
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 48 / 58

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT027P.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
