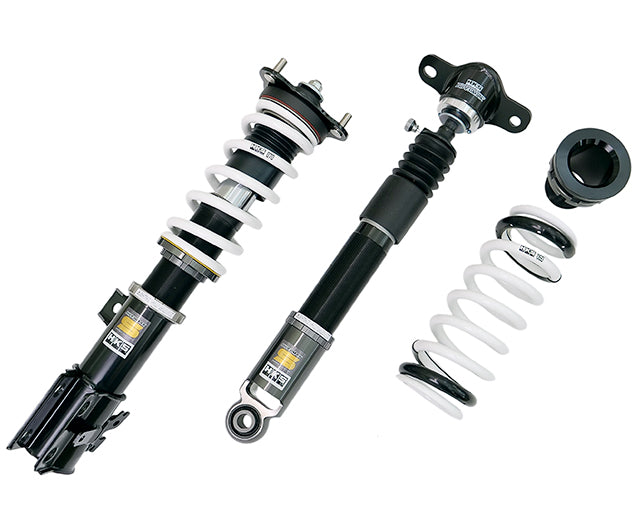

HKS Hipermax S Coilovers Toyota GR Yaris (GXPA16) 80330-AT035

80330-AT035

FITMENT
Toyota GR Yaris (GXPA16) 2024-

GENERAL FEATURES
Series - S
Toyota GR Yaris (GXPA16) - Engine - G16E-GTS / Fits 2024 model-change MT vehicles. 4WD only. Vehicle height data is measured on MT vehicles.
Additional manufacturer specification data follows below.

FRONT FEATURES
Toyota GR Yaris (GXPA16) - Spring rate N/mm (kgf/mm) - 69'7)
Toyota GR Yaris (GXPA16) - Spring free height, mm - 200(Barrel)
Toyota GR Yaris (GXPA16) - Damping force at 0.1 m/s, rebound/compression, N - 593/471
Toyota GR Yaris (GXPA16) - Vehicle height (highest - lowest), mm - -27(0 - -66)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 69 ( 7.0 )
Free height (mm) - 200
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - +10 ( 1 ) ※1
Damping force (Rebound/Damping)N* - 593 / 471
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 47 / 59

REAR FEATURES
Toyota GR Yaris (GXPA16) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota GR Yaris (GXPA16) - Spring free height, mm - 250(Barrel)
Toyota GR Yaris (GXPA16) - Damping force at 0.1 m/s, rebound/compression, N - 363/432
Toyota GR Yaris (GXPA16) - Vehicle height (highest - lowest), mm - -26(+1 - -59)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 59 ( 6.0 )
Free height (mm) - 250
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - +10 ( 1 )
Damping force (Rebound/Damping)N* - 363 / 432
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 52 / 62

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT035.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
