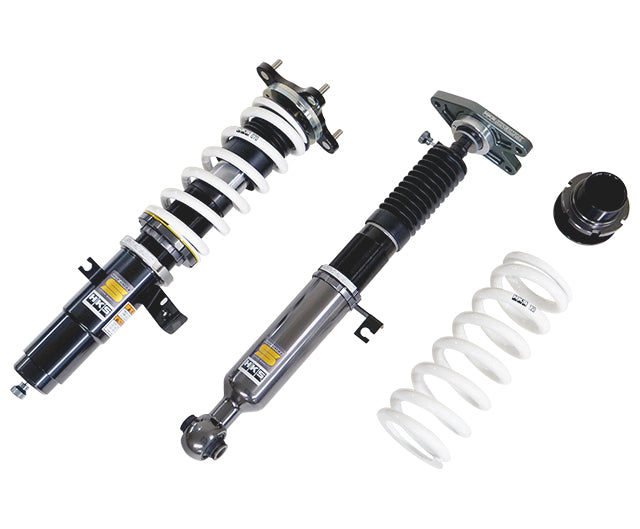

HKS Hipermax S Coilovers Toyota GR Supra (DB06) / Toyota GR Supra (DB02) / Toyota GR Supra (DB42) / Toyota GR Supra (DB22) / Toyota GR Supra (DB82) 80330-AT023P

80330-AT023P

FITMENT
Toyota GR Supra (DB06) 2022-
Toyota GR Supra (DB02) 2020-
Toyota GR Supra (DB42) 2019-
Toyota GR Supra (DB22) 2019-
Toyota GR Supra (DB82) 2019-

GENERAL FEATURES
Series - S
Toyota GR Supra (DB06) - Engine - B58B30B / Front Upper Mount Pillow ball type * Toyota Safety Sense may malfunction due to narrowing of the radar/camera beam range and misalignment of the alignment center as the vehicle height is lowered.
Toyota GR Supra (DB02) - Engine - B58 / Front Upper Mount Pillow ball type * Toyota Safety Sense may malfunction due to narrowing of the radar/camera beam range and misalignment of the alignment center as the vehicle height is lowered.
Toyota GR Supra (DB42) - Engine - B58 / Front Upper Mount Pillow ball type * Toyota Safety Sense may malfunction due to narrowing of the radar/camera beam range and misalignment of the alignment center as the vehicle height is lowered.
Toyota GR Supra (DB22) - Engine - B48 / Front Upper Mount Pillow ball type * Toyota Safety Sense may malfunction due to narrowing of the radar/camera beam range and misalignment of the alignment center as the vehicle height is lowered.
Toyota GR Supra (DB82) - Engine - B48 / Front Upper Mount Pillow ball type * Toyota Safety Sense may malfunction due to narrowing of the radar/camera beam range and misalignment of the alignment center as the vehicle height is lowered.

FRONT FEATURES
Toyota GR Supra (DB06) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota GR Supra (DB06) - Spring free height, mm - 200
Toyota GR Supra (DB06) - Damping force at 0.1 m/s, rebound/compression, N - 1133/515
Toyota GR Supra (DB06) - Vehicle height (highest - lowest), mm - -41(-19 - -50)
Toyota GR Supra (DB02) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota GR Supra (DB02) - Spring free height, mm - 200
Toyota GR Supra (DB02) - Damping force at 0.1 m/s, rebound/compression, N - 1133/515
Toyota GR Supra (DB02) - Vehicle height (highest - lowest), mm - -50(-28 - -59)
Toyota GR Supra (DB42) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota GR Supra (DB42) - Spring free height, mm - 200
Toyota GR Supra (DB42) - Damping force at 0.1 m/s, rebound/compression, N - 1133/515
Toyota GR Supra (DB42) - Vehicle height (highest - lowest), mm - -33(-11 - -51)
Toyota GR Supra (DB22) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota GR Supra (DB22) - Spring free height, mm - 200
Toyota GR Supra (DB22) - Damping force at 0.1 m/s, rebound/compression, N - 1133/515
Toyota GR Supra (DB22) - Vehicle height (highest - lowest), mm - -35(-9 - -53)
Toyota GR Supra (DB82) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota GR Supra (DB82) - Spring free height, mm - 200
Toyota GR Supra (DB82) - Damping force at 0.1 m/s, rebound/compression, N - 1133/515
Toyota GR Supra (DB82) - Vehicle height (highest - lowest), mm - -35(-9 - -53)

REAR FEATURES
Toyota GR Supra (DB06) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota GR Supra (DB06) - Spring free height, mm - 250(Barrel)
Toyota GR Supra (DB06) - Damping force at 0.1 m/s, rebound/compression, N - 633/417
Toyota GR Supra (DB06) - Vehicle height (highest - lowest), mm - -39(-15 - -69)
Toyota GR Supra (DB02) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota GR Supra (DB02) - Spring free height, mm - 250(Barrel)
Toyota GR Supra (DB02) - Damping force at 0.1 m/s, rebound/compression, N - 633/417
Toyota GR Supra (DB02) - Vehicle height (highest - lowest), mm - -46(-22 - -76)
Toyota GR Supra (DB42) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota GR Supra (DB42) - Spring free height, mm - 250(Barrel)
Toyota GR Supra (DB42) - Damping force at 0.1 m/s, rebound/compression, N - 633/417
Toyota GR Supra (DB42) - Vehicle height (highest - lowest), mm - -30(-6 - -64)
Toyota GR Supra (DB22) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota GR Supra (DB22) - Spring free height, mm - 250(Barrel)
Toyota GR Supra (DB22) - Damping force at 0.1 m/s, rebound/compression, N - 633/417
Toyota GR Supra (DB22) - Vehicle height (highest - lowest), mm - -27(-3 - -61)
Toyota GR Supra (DB82) - Spring rate N/mm (kgf/mm) - 118(12)
Toyota GR Supra (DB82) - Spring free height, mm - 250(Barrel)
Toyota GR Supra (DB82) - Damping force at 0.1 m/s, rebound/compression, N - 633/417
Toyota GR Supra (DB82) - Vehicle height (highest - lowest), mm - -27(-3 - -61)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT023P.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
