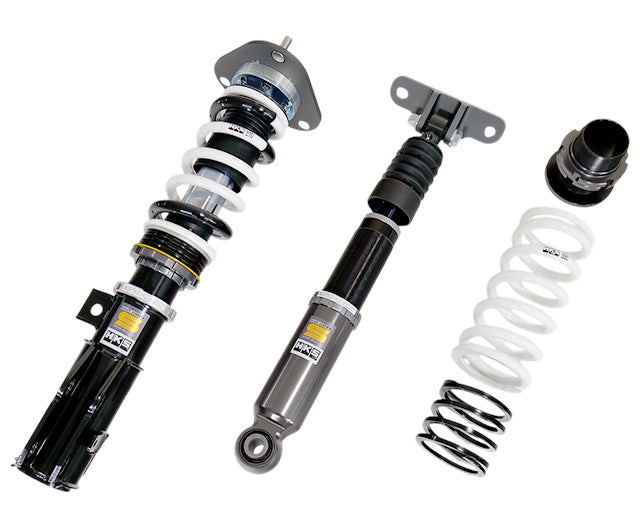

HKS Hipermax S Coilovers Toyota GR Corolla (GZEA14H) 80330-AT030P

80330-AT030P

FITMENT
Toyota GR Corolla (GZEA14H) 2022-2025

GENERAL FEATURES
Series - S
Toyota GR Corolla (GZEA14H) - Engine - G16E-GTS / Front Upper Mount Pillow ball type. Morizo Edition not confirmed.
Additional manufacturer specification data follows below.

FRONT FEATURES
Toyota GR Corolla (GZEA14H) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota GR Corolla (GZEA14H) - Spring free height, mm - 200(Barrel)
Toyota GR Corolla (GZEA14H) - Damping force at 0.1 m/s, rebound/compression, N - 579/525
Toyota GR Corolla (GZEA14H) - Vehicle height (highest - lowest), mm - -14(0 - -40)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (7.6)
Spring rate N/mm(kgf/mm) - 69 ( 7.0 )
Free height (mm) - 200
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 579 / 525
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 55 / 45

REAR FEATURES
Toyota GR Corolla (GZEA14H) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota GR Corolla (GZEA14H) - Spring free height, mm - 200
Toyota GR Corolla (GZEA14H) - Damping force at 0.1 m/s, rebound/compression, N - 687/495
Toyota GR Corolla (GZEA14H) - Vehicle height (highest - lowest), mm - -25(0 - -71)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 88 ( 9.0 )
Free height (mm) - 200
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±10 ( 1 )
Damping force (Rebound/Damping)N* - 687 / 495
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 54 / 50

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT030P.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
