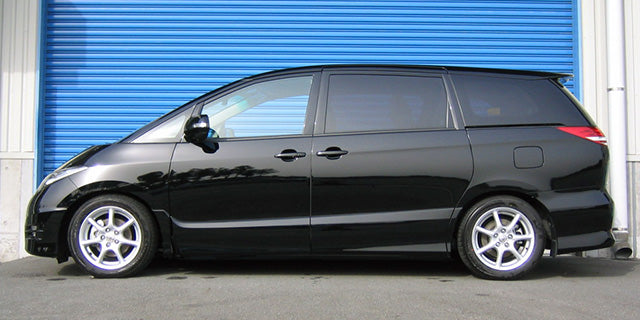

HKS Hipermax S Coilovers Toyota Estima (GSR50W) / Toyota Estima (GSR55W) / Toyota Estima (ACR50W) / Toyota Estima (ACR55W) / Toyota Estima (AHR20W) 80330-AT037

80330-AT037

FITMENT
Toyota Estima (GSR50W) 2006-2019
Toyota Estima (GSR55W) 2006-2019
Toyota Estima (ACR50W) 2006-2019
Toyota Estima (ACR55W) 2006-2019
Toyota Estima (AHR20W) 2006-2019

GENERAL FEATURES
Series - S
Toyota Estima (GSR50W) - Engine - 2GR-FE / Make to order item 2WD
Toyota Estima (GSR55W) - Engine - 2GR-FE / Make to order item Data for 4WD model. Vehicle height data is measured on ACR55W.
Toyota Estima (ACR50W) - Engine - 2AZ-FE / Make to order item 2WD
Toyota Estima (ACR55W) - Engine - 2AZ-FE / Make to order item 4WD
Toyota Estima (AHR20W) - Engine - 2AZ-FXE(2AZ-2JM) / Make to order item Data for "HYBRID" model. Vehicle height data is measured on ACR50W.

FRONT FEATURES
Toyota Estima (GSR50W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Estima (GSR50W) - Spring free height, mm - 250(Barrel)
Toyota Estima (GSR50W) - Damping force at 0.1 m/s, rebound/compression, N - 500/216
Toyota Estima (GSR50W) - Vehicle height (highest - lowest), mm - -49(0 - -71)
Toyota Estima (GSR55W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Estima (GSR55W) - Spring free height, mm - 250(Barrel)
Toyota Estima (GSR55W) - Damping force at 0.1 m/s, rebound/compression, N - 500/216
Toyota Estima (GSR55W) - Vehicle height (highest - lowest), mm - -56(0 - -65)
Toyota Estima (ACR50W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Estima (ACR50W) - Spring free height, mm - 250(Barrel)
Toyota Estima (ACR50W) - Damping force at 0.1 m/s, rebound/compression, N - 500/216
Toyota Estima (ACR50W) - Vehicle height (highest - lowest), mm - -35(0 - -63)
Toyota Estima (ACR55W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Estima (ACR55W) - Spring free height, mm - 250(Barrel)
Toyota Estima (ACR55W) - Damping force at 0.1 m/s, rebound/compression, N - 500/216
Toyota Estima (ACR55W) - Vehicle height (highest - lowest), mm - -56(0 - -65)
Toyota Estima (AHR20W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Estima (AHR20W) - Spring free height, mm - 250(Barrel)
Toyota Estima (AHR20W) - Damping force at 0.1 m/s, rebound/compression, N - 500/216
Toyota Estima (AHR20W) - Vehicle height (highest - lowest), mm - -35(0 - -63)

REAR FEATURES
Toyota Estima (GSR50W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Estima (GSR50W) - Spring free height, mm - Special
Toyota Estima (GSR50W) - Damping force at 0.1 m/s, rebound/compression, N - 402/127
Toyota Estima (GSR50W) - Vehicle height (highest - lowest), mm - -39(-19 - -76)
Toyota Estima (GSR55W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Estima (GSR55W) - Spring free height, mm - Special
Toyota Estima (GSR55W) - Damping force at 0.1 m/s, rebound/compression, N - 402/127
Toyota Estima (GSR55W) - Vehicle height (highest - lowest), mm - -63(-43 - 100)
Toyota Estima (ACR50W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Estima (ACR50W) - Spring free height, mm - Special
Toyota Estima (ACR50W) - Damping force at 0.1 m/s, rebound/compression, N - 402/127
Toyota Estima (ACR50W) - Vehicle height (highest - lowest), mm - -31(-11 - 68)
Toyota Estima (ACR55W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Estima (ACR55W) - Spring free height, mm - Special
Toyota Estima (ACR55W) - Damping force at 0.1 m/s, rebound/compression, N - 402/127
Toyota Estima (ACR55W) - Vehicle height (highest - lowest), mm - -63(-43 - 100)
Toyota Estima (AHR20W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Estima (AHR20W) - Spring free height, mm - Special
Toyota Estima (AHR20W) - Damping force at 0.1 m/s, rebound/compression, N - 402/127
Toyota Estima (AHR20W) - Vehicle height (highest - lowest), mm - -31(-11 - 68)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT037.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
