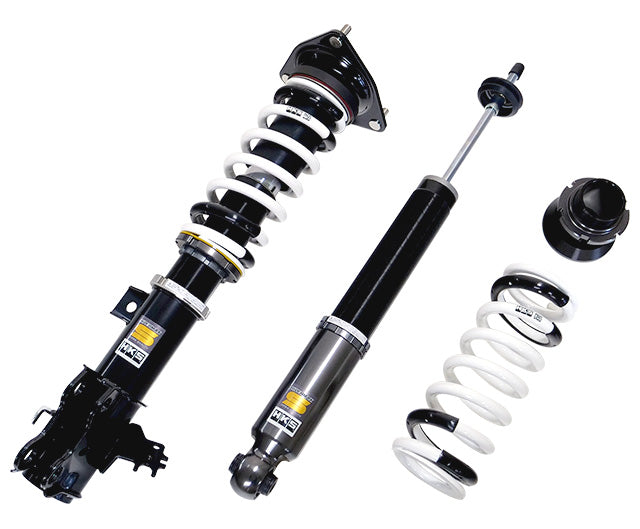

HKS Hipermax S Coilovers Toyota Crown Sport (AZSH36W) 80330-AT036

80330-AT036

FITMENT
Toyota Crown Sport (AZSH36W) 2023-

GENERAL FEATURES
Series - S
Toyota Crown Sport (AZSH36W) - Engine - A25A-FXS(A25A-3NM-4NM) / Not compatible with vehicles equipped with electronically controlled suspension
Additional manufacturer specification data follows below.

FRONT FEATURES
Toyota Crown Sport (AZSH36W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Crown Sport (AZSH36W) - Spring free height, mm - 250(Barrel)
Toyota Crown Sport (AZSH36W) - Damping force at 0.1 m/s, rebound/compression, N - 412/284
Toyota Crown Sport (AZSH36W) - Vehicle height (highest - lowest), mm - -31(0 - -63)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 49 ( 5.0 )
Free height (mm) - 250
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - +10 ( 1 )
Damping force (Rebound/Damping)N* - 412 / 284
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 59 / 54

REAR FEATURES
Toyota Crown Sport (AZSH36W) - Spring rate N/mm (kgf/mm) - 78(8)
Toyota Crown Sport (AZSH36W) - Spring free height, mm - 250
Toyota Crown Sport (AZSH36W) - Damping force at 0.1 m/s, rebound/compression, N - 333/304
Toyota Crown Sport (AZSH36W) - Vehicle height (highest - lowest), mm - -36(-8 - -70)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Stock
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 78 ( 8.0 )
Free height (mm) - 250
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - +10 ( 1 )
Damping force (Rebound/Damping)N* - 333 / 304
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 62 / 71

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT036.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
