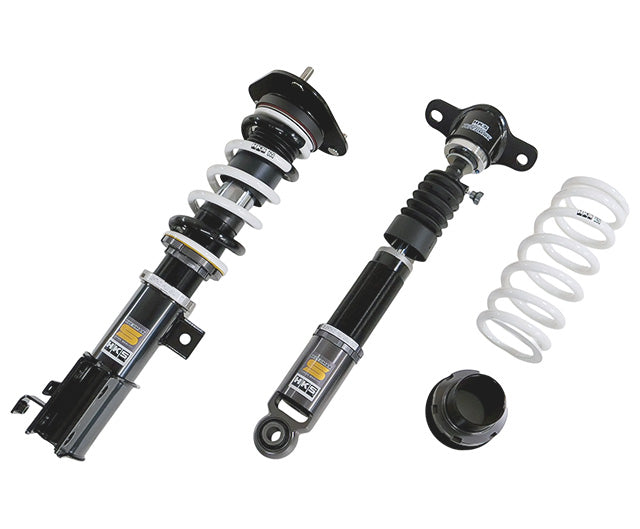

HKS Hipermax S Coilovers Toyota Corolla Sport (MZEA12H) / Toyota Corolla Sport (ZWE219H) / Toyota Corolla Sport (ZWE211H) / Toyota Corolla Sport (NRE210H) / Toyota Corolla Touring (ZWE211W) 80330-AT016

80330-AT016

FITMENT
Toyota Corolla Sport (MZEA12H) 2022-
Toyota Corolla Sport (ZWE219H) 2022-
Toyota Corolla Sport (ZWE211H) 2018-
Toyota Corolla Sport (NRE210H) 2018-
Toyota Corolla Touring (ZWE211W) 2019-

GENERAL FEATURES
Series - S
Toyota Corolla Sport (MZEA12H) - Engine - M20A-FKS / Vehicle height data is measured on ZWE219H.
Toyota Corolla Sport (ZWE219H) - Engine - 2ZR-FXE(2ZR-1VM)
Toyota Corolla Sport (ZWE211H) - Engine - 2ZR-FXE(2ZR-1NM)
Toyota Corolla Sport (NRE210H) - Engine - 8NR-FTS
Toyota Corolla Touring (ZWE211W) - Engine - 2ZR-FXE(2ZR-1NM)

FRONT FEATURES
Toyota Corolla Sport (MZEA12H) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Corolla Sport (MZEA12H) - Spring free height, mm - 200(Barrel)
Toyota Corolla Sport (MZEA12H) - Damping force at 0.1 m/s, rebound/compression, N - 471/343
Toyota Corolla Sport (MZEA12H) - Vehicle height (highest - lowest), mm - -24(0 - -52)
Toyota Corolla Sport (ZWE219H) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Corolla Sport (ZWE219H) - Spring free height, mm - 200(Barrel)
Toyota Corolla Sport (ZWE219H) - Damping force at 0.1 m/s, rebound/compression, N - 471/343
Toyota Corolla Sport (ZWE219H) - Vehicle height (highest - lowest), mm - -24(0 - -52)
Toyota Corolla Sport (ZWE211H) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Corolla Sport (ZWE211H) - Spring free height, mm - 200(Barrel)
Toyota Corolla Sport (ZWE211H) - Damping force at 0.1 m/s, rebound/compression, N - 471/343
Toyota Corolla Sport (ZWE211H) - Vehicle height (highest - lowest), mm - -33(0 - -61)
Toyota Corolla Sport (NRE210H) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Corolla Sport (NRE210H) - Spring free height, mm - 200(Barrel)
Toyota Corolla Sport (NRE210H) - Damping force at 0.1 m/s, rebound/compression, N - 471/343
Toyota Corolla Sport (NRE210H) - Vehicle height (highest - lowest), mm - -19(0 - -47)
Toyota Corolla Touring (ZWE211W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Corolla Touring (ZWE211W) - Spring free height, mm - 200(Barrel)
Toyota Corolla Touring (ZWE211W) - Damping force at 0.1 m/s, rebound/compression, N - 471/343
Toyota Corolla Touring (ZWE211W) - Vehicle height (highest - lowest), mm - -33(0 - -61)

REAR FEATURES
Toyota Corolla Sport (MZEA12H) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota Corolla Sport (MZEA12H) - Spring free height, mm - 220(Barrel)
Toyota Corolla Sport (MZEA12H) - Damping force at 0.1 m/s, rebound/compression, N - 363/412
Toyota Corolla Sport (MZEA12H) - Vehicle height (highest - lowest), mm - -32(0 - -65)
Toyota Corolla Sport (ZWE219H) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota Corolla Sport (ZWE219H) - Spring free height, mm - 220(Barrel)
Toyota Corolla Sport (ZWE219H) - Damping force at 0.1 m/s, rebound/compression, N - 363/412
Toyota Corolla Sport (ZWE219H) - Vehicle height (highest - lowest), mm - -32(0 - -65)
Toyota Corolla Sport (ZWE211H) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota Corolla Sport (ZWE211H) - Spring free height, mm - 220(Barrel)
Toyota Corolla Sport (ZWE211H) - Damping force at 0.1 m/s, rebound/compression, N - 363/412
Toyota Corolla Sport (ZWE211H) - Vehicle height (highest - lowest), mm - -31(0 - -54)
Toyota Corolla Sport (NRE210H) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota Corolla Sport (NRE210H) - Spring free height, mm - 220(Barrel)
Toyota Corolla Sport (NRE210H) - Damping force at 0.1 m/s, rebound/compression, N - 363/412
Toyota Corolla Sport (NRE210H) - Vehicle height (highest - lowest), mm - -24(0 - -47)
Toyota Corolla Touring (ZWE211W) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota Corolla Touring (ZWE211W) - Spring free height, mm - 220(Barrel)
Toyota Corolla Touring (ZWE211W) - Damping force at 0.1 m/s, rebound/compression, N - 363/412
Toyota Corolla Touring (ZWE211W) - Vehicle height (highest - lowest), mm - -31(0 - -54)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT016.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
