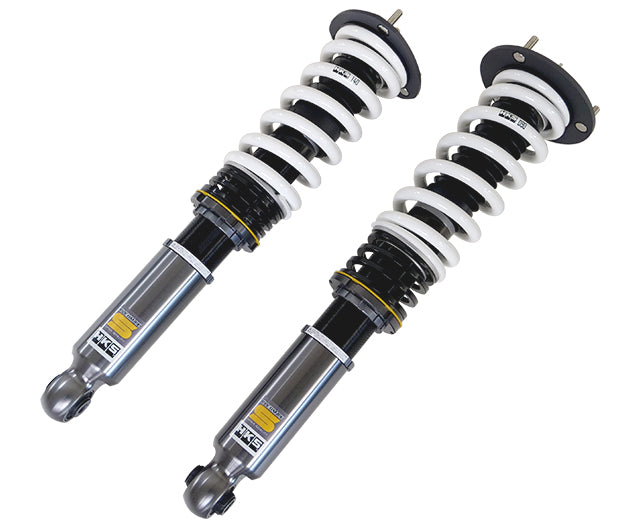

HKS Hipermax S Coilovers Toyota Cresta (JZX100, JZX101, GX100, JZX90, JZX91, GX90, SX90) / Toyota Chaser (JZX100, JZX101, GX100, JZX90, JZX91, GX90, SX90) / Toyota Mark Ii (JZX100, JZX101, GX100, JZX90, JZX91, GX90, SX90) 80330-AT009

80330-AT009

FITMENT
Toyota Cresta (JZX100) 1996-2000
Toyota Cresta (JZX101) 1996-2000
Toyota Cresta (GX100) 1996-2000
Toyota Cresta (JZX90) 1992-1996
Toyota Cresta (JZX91) 1992-1996
Toyota Cresta (GX90) 1992-1996
Toyota Cresta (SX90) 1992-1996
Toyota Chaser (JZX100) 1996-2000
Toyota Chaser (JZX101) 1996-2000
Toyota Chaser (GX100) 1996-2000
Toyota Chaser (JZX90) 1992-1996
Toyota Chaser (JZX91) 1992-1996
Toyota Chaser (GX90) 1992-1996
Toyota Chaser (SX90) 1992-1996
Toyota Mark Ii (JZX100) 1996-2000
Toyota Mark Ii (JZX101) 1996-2000
Toyota Mark Ii (GX100) 1996-2000
Toyota Mark Ii (JZX90) 1992-1996
Toyota Mark Ii (JZX91) 1992-1996
Toyota Mark Ii (GX90) 1992-1996
Toyota Mark Ii (SX90) 1992-1996

GENERAL FEATURES
Series - S
Toyota Cresta (JZX100) - Engine - 1JZ-GE
Toyota Cresta (JZX100) - Engine - 1JZ-GTE
Toyota Cresta (JZX101) - Engine - 2JZ-GE / Vehicle height data is measured on JZX100.
Toyota Cresta (GX100) - Engine - 1G-FE / Vehicle height data is measured on JZX100.
Toyota Cresta (JZX90) - Engine - 1JZ-GE / Vehicle height data is measured on JZX100.
Toyota Cresta (JZX90) - Engine - 1JZ-GTE / Vehicle height data is measured on JZX100.
Toyota Cresta (JZX91) - Engine - 2JZ-GE / Vehicle height data is measured on JZX100.
Toyota Cresta (GX90) - Engine - 1G-FE / Vehicle height data is measured on JZX100.
Toyota Cresta (SX90) - Engine - 4S-FE / Vehicle height data is measured on JZX100.
Toyota Chaser (JZX100) - Engine - 1JZ-GE
Toyota Chaser (JZX100) - Engine - 1JZ-GTE
Toyota Chaser (JZX101) - Engine - 2JZ-GE / Vehicle height data is measured on JZX100.
Toyota Chaser (GX100) - Engine - 1G-FE / Vehicle height data is measured on JZX100.
Toyota Chaser (JZX90) - Engine - 1JZ-GE / Vehicle height data is measured on JZX100.
Toyota Chaser (JZX90) - Engine - 1JZ-GTE / Vehicle height data is measured on JZX100.
Toyota Chaser (JZX91) - Engine - 2JZ-GE / Vehicle height data is measured on JZX100.
Toyota Chaser (GX90) - Engine - 1G-FE / Vehicle height data is measured on JZX100.
Toyota Chaser (SX90) - Engine - 4S-FE / Vehicle height data is measured on JZX100.
Toyota Mark Ii (JZX100) - Engine - 1JZ-GE
Toyota Mark Ii (JZX100) - Engine - 1JZ-GTE
Toyota Mark Ii (JZX101) - Engine - 2JZ-GE / Vehicle height data is measured on JZX100.
Toyota Mark Ii (GX100) - Engine - 1G-FE / Vehicle height data is measured on JZX100.
Toyota Mark Ii (JZX90) - Engine - 1JZ-GE / Vehicle height data is measured on JZX100.
Toyota Mark Ii (JZX90) - Engine - 1JZ-GTE / Vehicle height data is measured on JZX100.
Toyota Mark Ii (JZX91) - Engine - 2JZ-GE / Vehicle height data is measured on JZX100.
Toyota Mark Ii (GX90) - Engine - 1G-FE / Vehicle height data is measured on JZX100.
Toyota Mark Ii (SX90) - Engine - 4S-FE / Vehicle height data is measured on JZX100.

FRONT FEATURES
Toyota Cresta (JZX100) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Cresta (JZX100) - Spring free height, mm - 200
Toyota Cresta (JZX100) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Cresta (JZX100) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Cresta (JZX101) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Cresta (JZX101) - Spring free height, mm - 200
Toyota Cresta (JZX101) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Cresta (JZX101) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Cresta (GX100) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Cresta (GX100) - Spring free height, mm - 200
Toyota Cresta (GX100) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Cresta (GX100) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Cresta (JZX90) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Cresta (JZX90) - Spring free height, mm - 200
Toyota Cresta (JZX90) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Cresta (JZX90) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Cresta (JZX91) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Cresta (JZX91) - Spring free height, mm - 200
Toyota Cresta (JZX91) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Cresta (JZX91) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Cresta (GX90) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Cresta (GX90) - Spring free height, mm - 200
Toyota Cresta (GX90) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Cresta (GX90) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Cresta (SX90) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Cresta (SX90) - Spring free height, mm - 200
Toyota Cresta (SX90) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Cresta (SX90) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Chaser (JZX100) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Chaser (JZX100) - Spring free height, mm - 200
Toyota Chaser (JZX100) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Chaser (JZX100) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Chaser (JZX101) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Chaser (JZX101) - Spring free height, mm - 200
Toyota Chaser (JZX101) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Chaser (JZX101) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Chaser (GX100) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Chaser (GX100) - Spring free height, mm - 200
Toyota Chaser (GX100) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Chaser (GX100) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Chaser (JZX90) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Chaser (JZX90) - Spring free height, mm - 200
Toyota Chaser (JZX90) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Chaser (JZX90) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Chaser (JZX91) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Chaser (JZX91) - Spring free height, mm - 200
Toyota Chaser (JZX91) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Chaser (JZX91) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Chaser (GX90) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Chaser (GX90) - Spring free height, mm - 200
Toyota Chaser (GX90) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Chaser (GX90) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Chaser (SX90) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Chaser (SX90) - Spring free height, mm - 200
Toyota Chaser (SX90) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Chaser (SX90) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Mark Ii (JZX100) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Mark Ii (JZX100) - Spring free height, mm - 200
Toyota Mark Ii (JZX100) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Mark Ii (JZX100) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Mark Ii (JZX101) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Mark Ii (JZX101) - Spring free height, mm - 200
Toyota Mark Ii (JZX101) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Mark Ii (JZX101) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Mark Ii (GX100) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Mark Ii (GX100) - Spring free height, mm - 200
Toyota Mark Ii (GX100) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Mark Ii (GX100) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Mark Ii (JZX90) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Mark Ii (JZX90) - Spring free height, mm - 200
Toyota Mark Ii (JZX90) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Mark Ii (JZX90) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Mark Ii (JZX91) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Mark Ii (JZX91) - Spring free height, mm - 200
Toyota Mark Ii (JZX91) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Mark Ii (JZX91) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Mark Ii (GX90) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Mark Ii (GX90) - Spring free height, mm - 200
Toyota Mark Ii (GX90) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Mark Ii (GX90) - Vehicle height (highest - lowest), mm - -33(0 - -96)
Toyota Mark Ii (SX90) - Spring rate N/mm (kgf/mm) - 137(14)
Toyota Mark Ii (SX90) - Spring free height, mm - 200
Toyota Mark Ii (SX90) - Damping force at 0.1 m/s, rebound/compression, N - 1500/650
Toyota Mark Ii (SX90) - Vehicle height (highest - lowest), mm - -33(0 - -96)

REAR FEATURES
Toyota Cresta (JZX100) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Cresta (JZX100) - Spring free height, mm - 220(Barrel)
Toyota Cresta (JZX100) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Cresta (JZX100) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Cresta (JZX101) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Cresta (JZX101) - Spring free height, mm - 220(Barrel)
Toyota Cresta (JZX101) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Cresta (JZX101) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Cresta (GX100) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Cresta (GX100) - Spring free height, mm - 220(Barrel)
Toyota Cresta (GX100) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Cresta (GX100) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Cresta (JZX90) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Cresta (JZX90) - Spring free height, mm - 220(Barrel)
Toyota Cresta (JZX90) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Cresta (JZX90) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Cresta (JZX91) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Cresta (JZX91) - Spring free height, mm - 220(Barrel)
Toyota Cresta (JZX91) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Cresta (JZX91) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Cresta (GX90) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Cresta (GX90) - Spring free height, mm - 220(Barrel)
Toyota Cresta (GX90) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Cresta (GX90) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Cresta (SX90) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Cresta (SX90) - Spring free height, mm - 220(Barrel)
Toyota Cresta (SX90) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Cresta (SX90) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Chaser (JZX100) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Chaser (JZX100) - Spring free height, mm - 220(Barrel)
Toyota Chaser (JZX100) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Chaser (JZX100) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Chaser (JZX101) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Chaser (JZX101) - Spring free height, mm - 220(Barrel)
Toyota Chaser (JZX101) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Chaser (JZX101) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Chaser (GX100) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Chaser (GX100) - Spring free height, mm - 220(Barrel)
Toyota Chaser (GX100) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Chaser (GX100) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Chaser (JZX90) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Chaser (JZX90) - Spring free height, mm - 220(Barrel)
Toyota Chaser (JZX90) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Chaser (JZX90) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Chaser (JZX91) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Chaser (JZX91) - Spring free height, mm - 220(Barrel)
Toyota Chaser (JZX91) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Chaser (JZX91) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Chaser (GX90) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Chaser (GX90) - Spring free height, mm - 220(Barrel)
Toyota Chaser (GX90) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Chaser (GX90) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Chaser (SX90) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Chaser (SX90) - Spring free height, mm - 220(Barrel)
Toyota Chaser (SX90) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Chaser (SX90) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Mark Ii (JZX100) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Mark Ii (JZX100) - Spring free height, mm - 220(Barrel)
Toyota Mark Ii (JZX100) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Mark Ii (JZX100) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Mark Ii (JZX101) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Mark Ii (JZX101) - Spring free height, mm - 220(Barrel)
Toyota Mark Ii (JZX101) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Mark Ii (JZX101) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Mark Ii (GX100) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Mark Ii (GX100) - Spring free height, mm - 220(Barrel)
Toyota Mark Ii (GX100) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Mark Ii (GX100) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Mark Ii (JZX90) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Mark Ii (JZX90) - Spring free height, mm - 220(Barrel)
Toyota Mark Ii (JZX90) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Mark Ii (JZX90) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Mark Ii (JZX91) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Mark Ii (JZX91) - Spring free height, mm - 220(Barrel)
Toyota Mark Ii (JZX91) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Mark Ii (JZX91) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Mark Ii (GX90) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Mark Ii (GX90) - Spring free height, mm - 220(Barrel)
Toyota Mark Ii (GX90) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Mark Ii (GX90) - Vehicle height (highest - lowest), mm - -31(-1 - -85)
Toyota Mark Ii (SX90) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Mark Ii (SX90) - Spring free height, mm - 220(Barrel)
Toyota Mark Ii (SX90) - Damping force at 0.1 m/s, rebound/compression, N - 630/500
Toyota Mark Ii (SX90) - Vehicle height (highest - lowest), mm - -31(-1 - -85)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT009.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.

Manufacturer product details.
