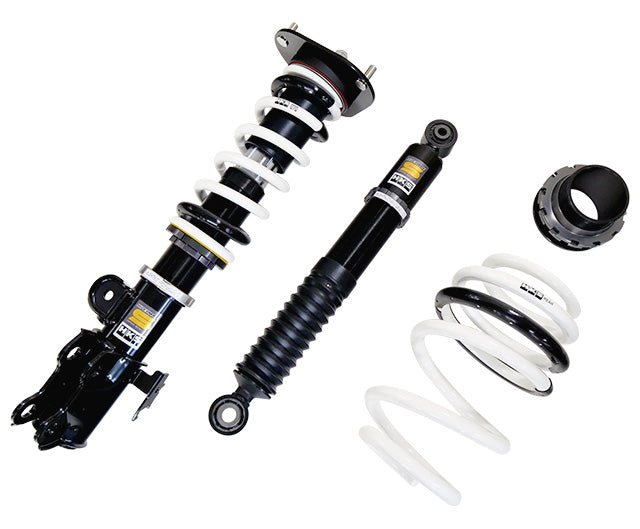

HKS Hipermax S Coilovers Toyota Alphard (GGH35W) / Toyota Alphard (AYH30W) / Toyota Alphard (AGH35W) / Toyota Vellfire (GGH35W) / Toyota Vellfire (AGH35W) / Toyota Vellfire (AYH30W) 80330-AT043

80330-AT043

FITMENT
Toyota Alphard (GGH35W) 2018-2023
Toyota Alphard (GGH35W) 2015-2017
Toyota Alphard (AYH30W) 2018-2023
Toyota Alphard (AYH30W) 2015-2017
Toyota Alphard (AGH35W) 2018-2023
Toyota Alphard (AGH35W) 2015-2017
Toyota Vellfire (GGH35W) 2018-2023
Toyota Vellfire (GGH35W) 2015-2017
Toyota Vellfire (AGH35W) 2018-2023
Toyota Vellfire (AGH35W) 2015-2017
Toyota Vellfire (AYH30W) 2018-2023
Toyota Vellfire (AYH30W) 2015-2017

GENERAL FEATURES
Series - S
Toyota Alphard (GGH35W) - Engine - 2GR-FE / Data for 4WD model. Not compatible with vehicles equipped with side lift-up seats. Vehicle height data is measured on AGH35W (early model).
Toyota Alphard (AYH30W) - Engine - 2AR-FXE(2AR-2JM) / Testing confirmed on 2019 model. Not compatible with vehicles equipped with side lift-up seats.
Toyota Alphard (AYH30W) - Engine - 2AR-FXE(2AR-2JM) / Testing confirmed on 2019 model. Not compatible with vehicles equipped with side lift-up seats. height data is measured on AGH30W (late model).
Toyota Alphard (AGH35W) - Engine - 2AR-FE / Data for 4WD model. Not compatible with vehicles equipped with side lift-up seats. Vehicle height data is measured on AGH35W (early model).
Toyota Alphard (AGH35W) - Engine - 2AR-FE / Data for 4WD model. Not compatible with vehicles equipped with side lift-up seats.
Toyota Vellfire (GGH35W) - Engine - 2GR-FE / Data for 4WD model. Not compatible with vehicles equipped with side lift-up seats. Vehicle height data is measured on AGH35W (early model).
Toyota Vellfire (AGH35W) - Engine - 2AR-FE / Data for 4WD model. Not compatible with vehicles equipped with side lift-up seats. Vehicle height data is measured on AGH35W (early model).
Toyota Vellfire (AGH35W) - Engine - 2AR-FE / Data for 4WD model. Not compatible with vehicles equipped with side lift-up seats.
Toyota Vellfire (AYH30W) - Engine - 2AR-FXE(2AR-2JM) / Testing confirmed on 2019 model. Not compatible with vehicles equipped with side lift-up seats.
Toyota Vellfire (AYH30W) - Engine - 2AR-FXE(2AR-2JM) / Testing confirmed on 2019 model. Not compatible with vehicles equipped with side lift-up seats. height data is measured on AGH30W (late model).

FRONT FEATURES
Toyota Alphard (GGH35W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Alphard (GGH35W) - Spring free height, mm - 250(Barrel)
Toyota Alphard (GGH35W) - Damping force at 0.1 m/s, rebound/compression, N - 650/325
Toyota Alphard (GGH35W) - Vehicle height (highest - lowest), mm - -47(-7 - -58)
Toyota Alphard (AYH30W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Alphard (AYH30W) - Spring free height, mm - 250(Barrel)
Toyota Alphard (AYH30W) - Damping force at 0.1 m/s, rebound/compression, N - 650/325
Toyota Alphard (AYH30W) - Vehicle height (highest - lowest), mm - -51(-20 - -62)
Toyota Alphard (AGH35W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Alphard (AGH35W) - Spring free height, mm - 250(Barrel)
Toyota Alphard (AGH35W) - Damping force at 0.1 m/s, rebound/compression, N - 650/325
Toyota Alphard (AGH35W) - Vehicle height (highest - lowest), mm - -47(-7 - -58)
Toyota Vellfire (GGH35W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Vellfire (GGH35W) - Spring free height, mm - 250(Barrel)
Toyota Vellfire (GGH35W) - Damping force at 0.1 m/s, rebound/compression, N - 650/325
Toyota Vellfire (GGH35W) - Vehicle height (highest - lowest), mm - -47(-7 - -58)
Toyota Vellfire (AGH35W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Vellfire (AGH35W) - Spring free height, mm - 250(Barrel)
Toyota Vellfire (AGH35W) - Damping force at 0.1 m/s, rebound/compression, N - 650/325
Toyota Vellfire (AGH35W) - Vehicle height (highest - lowest), mm - -47(-7 - -58)
Toyota Vellfire (AYH30W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Vellfire (AYH30W) - Spring free height, mm - 250(Barrel)
Toyota Vellfire (AYH30W) - Damping force at 0.1 m/s, rebound/compression, N - 650/325
Toyota Vellfire (AYH30W) - Vehicle height (highest - lowest), mm - -51(-20 - -62)

REAR FEATURES
Toyota Alphard (GGH35W) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Alphard (GGH35W) - Spring free height, mm - Special
Toyota Alphard (GGH35W) - Damping force at 0.1 m/s, rebound/compression, N - 600/400
Toyota Alphard (GGH35W) - Vehicle height (highest - lowest), mm - -42(-7 - -66)
Toyota Alphard (AYH30W) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Alphard (AYH30W) - Spring free height, mm - Special
Toyota Alphard (AYH30W) - Damping force at 0.1 m/s, rebound/compression, N - 600/400
Toyota Alphard (AYH30W) - Vehicle height (highest - lowest), mm - -55(-20 - -79)
Toyota Alphard (AGH35W) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Alphard (AGH35W) - Spring free height, mm - Special
Toyota Alphard (AGH35W) - Damping force at 0.1 m/s, rebound/compression, N - 600/400
Toyota Alphard (AGH35W) - Vehicle height (highest - lowest), mm - -42(-7 - -66)
Toyota Vellfire (GGH35W) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Vellfire (GGH35W) - Spring free height, mm - Special
Toyota Vellfire (GGH35W) - Damping force at 0.1 m/s, rebound/compression, N - 600/400
Toyota Vellfire (GGH35W) - Vehicle height (highest - lowest), mm - -42(-7 - -66)
Toyota Vellfire (AGH35W) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Vellfire (AGH35W) - Spring free height, mm - Special
Toyota Vellfire (AGH35W) - Damping force at 0.1 m/s, rebound/compression, N - 600/400
Toyota Vellfire (AGH35W) - Vehicle height (highest - lowest), mm - -42(-7 - -66)
Toyota Vellfire (AYH30W) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Vellfire (AYH30W) - Spring free height, mm - Special
Toyota Vellfire (AYH30W) - Damping force at 0.1 m/s, rebound/compression, N - 600/400
Toyota Vellfire (AYH30W) - Vehicle height (highest - lowest), mm - -55(-20 - -79)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT043.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
