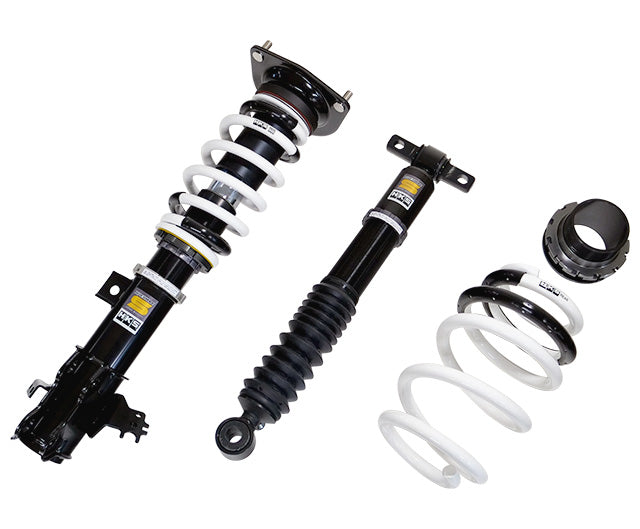

HKS Hipermax S Coilovers Toyota Alphard (AAHH40W) / Toyota Alphard (AGH40W) 80330-AT031

80330-AT031

FITMENT
Toyota Alphard (AAHH40W) 2023-
Toyota Alphard (AGH40W) 2023-

GENERAL FEATURES
Series - S
Toyota Alphard (AAHH40W) - Engine - A25A-FXS / Z Grade
Toyota Alphard (AGH40W) - Engine - 2AR-FE / Z Grade

FRONT FEATURES
Toyota Alphard (AAHH40W) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota Alphard (AAHH40W) - Spring free height, mm - 250(Special)
Toyota Alphard (AAHH40W) - Damping force at 0.1 m/s, rebound/compression, N - 549/324
Toyota Alphard (AAHH40W) - Vehicle height (highest - lowest), mm - -32(+9 - -64)
Toyota Alphard (AGH40W) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota Alphard (AGH40W) - Spring free height, mm - 250(Special)
Toyota Alphard (AGH40W) - Damping force at 0.1 m/s, rebound/compression, N - 549/324
Toyota Alphard (AGH40W) - Vehicle height (highest - lowest), mm - -38(+9 - -70)

REAR FEATURES
Toyota Alphard (AAHH40W) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Alphard (AAHH40W) - Spring free height, mm - Special
Toyota Alphard (AAHH40W) - Damping force at 0.1 m/s, rebound/compression, N - 549/402
Toyota Alphard (AAHH40W) - Vehicle height (highest - lowest), mm - -28(-9 - -50)
Toyota Alphard (AGH40W) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Alphard (AGH40W) - Spring free height, mm - Special
Toyota Alphard (AGH40W) - Damping force at 0.1 m/s, rebound/compression, N - 549/402
Toyota Alphard (AGH40W) - Vehicle height (highest - lowest), mm - -28(-9 - -50)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT031.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
