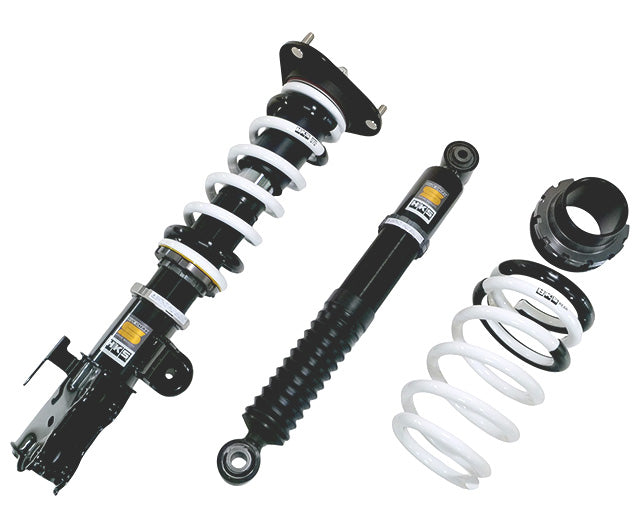

HKS Hipermax S Coilovers Toyota Alphard (GGH30W) / Toyota Alphard (AGH30W) / Toyota Vellfire (GGH30W) / Toyota Vellfire (AGH30W) 80330-AT042

80330-AT042

FITMENT
Toyota Alphard (GGH30W) 2018-2023
Toyota Alphard (GGH30W) 2015-2017
Toyota Alphard (AGH30W) 2018-2023
Toyota Alphard (AGH30W) 2015-2017
Toyota Vellfire (GGH30W) 2018-2023
Toyota Vellfire (GGH30W) 2015-2017
Toyota Vellfire (AGH30W) 2018-2023
Toyota Vellfire (AGH30W) 2015-2017

GENERAL FEATURES
Series - S
Toyota Alphard (GGH30W) - Engine - 2GR-FKS / Testing confirmed on 2.5 Z-G Edition, 2019 model. Not compatible with vehicles equipped with side lift-up seats. Vehicle height data is measured on AGH30W (Late Model).
Toyota Alphard (GGH30W) - Engine - 2GR-FE / Not compatible with vehicles equipped with side lift-up seats.
Toyota Alphard (AGH30W) - Engine - 2AR-FE / Testing confirmed on 2.5 Z-G Edition, 2019 model. Not compatible with vehicles equipped with side lift-up seats.
Toyota Alphard (AGH30W) - Engine - 2AR-FE / Not compatible with vehicles equipped with side lift-up seats.
Toyota Vellfire (GGH30W) - Engine - 2GR-FKS / Testing confirmed on 2.5 Z-G Edition, 2019 model. Not compatible with vehicles equipped with side lift-up seats. Vehicle height data is measured on AGH30W (Late Model).
Toyota Vellfire (GGH30W) - Engine - 2GR-FE / Not compatible with vehicles equipped with side lift-up seats.
Toyota Vellfire (AGH30W) - Engine - 2AR-FE / Testing confirmed on 2.5 Z-G Edition, 2019 model. Not compatible with vehicles equipped with side lift-up seats.
Toyota Vellfire (AGH30W) - Engine - 2AR-FE / Not compatible with vehicles equipped with side lift-up seats.

FRONT FEATURES
Toyota Alphard (GGH30W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Alphard (GGH30W) - Spring free height, mm - 250(Barrel)
Toyota Alphard (GGH30W) - Damping force at 0.1 m/s, rebound/compression, N - 610/300
Toyota Alphard (GGH30W) - Vehicle height (highest - lowest), mm - -37(0 - -50)
Toyota Alphard (GGH30W) - Vehicle height (highest - lowest), mm - -44(-7 - -56)
Toyota Alphard (AGH30W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Alphard (AGH30W) - Spring free height, mm - 250(Barrel)
Toyota Alphard (AGH30W) - Damping force at 0.1 m/s, rebound/compression, N - 610/300
Toyota Alphard (AGH30W) - Vehicle height (highest - lowest), mm - -37(0 - -50)
Toyota Alphard (AGH30W) - Vehicle height (highest - lowest), mm - -40(-3 - -53)
Toyota Vellfire (GGH30W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Vellfire (GGH30W) - Spring free height, mm - 250(Barrel)
Toyota Vellfire (GGH30W) - Damping force at 0.1 m/s, rebound/compression, N - 610/300
Toyota Vellfire (GGH30W) - Vehicle height (highest - lowest), mm - -37(0 - -50)
Toyota Vellfire (GGH30W) - Vehicle height (highest - lowest), mm - -44(-7 - -56)
Toyota Vellfire (AGH30W) - Spring rate N/mm (kgf/mm) - 69(7)
Toyota Vellfire (AGH30W) - Spring free height, mm - 250(Barrel)
Toyota Vellfire (AGH30W) - Damping force at 0.1 m/s, rebound/compression, N - 610/300
Toyota Vellfire (AGH30W) - Vehicle height (highest - lowest), mm - -37(0 - -50)
Toyota Vellfire (AGH30W) - Vehicle height (highest - lowest), mm - -40(-3 - -53)

REAR FEATURES
Toyota Alphard (GGH30W) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Alphard (GGH30W) - Spring free height, mm - Special
Toyota Alphard (GGH30W) - Damping force at 0.1 m/s, rebound/compression, N - 490/270
Toyota Alphard (GGH30W) - Vehicle height (highest - lowest), mm - -43(-10 - -78)
Toyota Alphard (GGH30W) - Vehicle height (highest - lowest), mm - -36(-3 - -71)
Toyota Alphard (AGH30W) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Alphard (AGH30W) - Spring free height, mm - Special
Toyota Alphard (AGH30W) - Damping force at 0.1 m/s, rebound/compression, N - 490/270
Toyota Alphard (AGH30W) - Vehicle height (highest - lowest), mm - -43(-10 - -78)
Toyota Alphard (AGH30W) - Vehicle height (highest - lowest), mm - -40(-7 - -75)
Toyota Vellfire (GGH30W) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Vellfire (GGH30W) - Spring free height, mm - Special
Toyota Vellfire (GGH30W) - Damping force at 0.1 m/s, rebound/compression, N - 490/270
Toyota Vellfire (GGH30W) - Vehicle height (highest - lowest), mm - -43(-10 - -78)
Toyota Vellfire (GGH30W) - Vehicle height (highest - lowest), mm - -36(-3 - -71)
Toyota Vellfire (AGH30W) - Spring rate N/mm (kgf/mm) - 88(9)
Toyota Vellfire (AGH30W) - Spring free height, mm - Special
Toyota Vellfire (AGH30W) - Damping force at 0.1 m/s, rebound/compression, N - 490/270
Toyota Vellfire (AGH30W) - Vehicle height (highest - lowest), mm - -43(-10 - -78)
Toyota Vellfire (AGH30W) - Vehicle height (highest - lowest), mm - -40(-7 - -75)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT042.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
