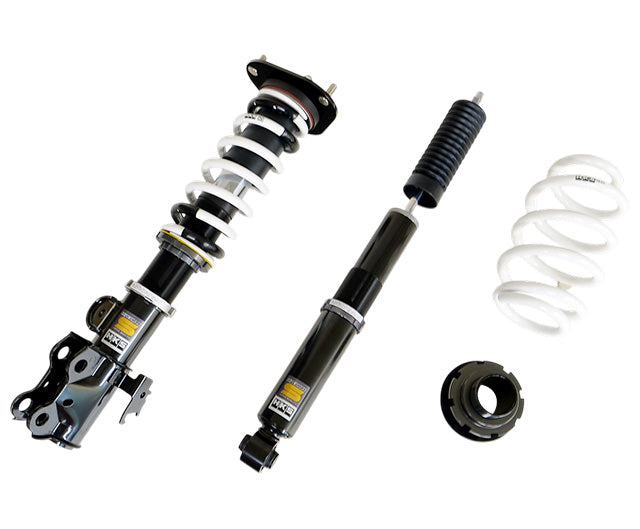

HKS Hipermax S Coilovers Toyota Alphard (ATH20W, GGH20W, GGH25W, ANH20W, ANH25W) / Toyota Vellfire (ATH20W, GGH20W, GGH25W, ANH20W, ANH25W) 80330-AT038

80330-AT038

FITMENT
Toyota Alphard (ATH20W) 2011-2015
Toyota Alphard (GGH20W) 2008-2015
Toyota Alphard (GGH25W) 2008-2015
Toyota Alphard (ANH20W) 2008-2015
Toyota Alphard (ANH25W) 2008-2015
Toyota Vellfire (ATH20W) 2011-2015
Toyota Vellfire (GGH20W) 2008-2015
Toyota Vellfire (GGH25W) 2008-2015
Toyota Vellfire (ANH20W) 2008-2015
Toyota Vellfire (ANH25W) 2008-2015

GENERAL FEATURES
Series - S
Toyota Alphard (ATH20W) - Engine - 2AZ-FXE(2AZ-2JM) / The model in the photo is ALPHARD (ANH20W).
Toyota Alphard (GGH20W) - Engine - 2GR-FE
Toyota Alphard (GGH25W) - Engine - 2GR-FE / Vehicle height data is measured on GGH20W.
Toyota Alphard (ANH20W) - Engine - 2AZ-FE
Toyota Alphard (ANH25W) - Engine - 2AZ-FE / The model in the photo is ALPHARD (ANH20W).
Toyota Vellfire (ATH20W) - Engine - 2AZ-FXE(2AZ-2JM) / The model in the photo is ALPHARD (ANH20W).
Toyota Vellfire (GGH20W) - Engine - 2GR-FE
Toyota Vellfire (GGH25W) - Engine - 2GR-FE / Vehicle height data is measured on GGH20W.
Toyota Vellfire (ANH20W) - Engine - 2AZ-FE / The model in the photo is ALPHARD (ANH20W).
Toyota Vellfire (ANH25W) - Engine - 2AZ-FE / The model in the photo is ALPHARD (ANH20W).

FRONT FEATURES
Toyota Alphard (ATH20W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Alphard (ATH20W) - Spring free height, mm - 250(Barrel)
Toyota Alphard (ATH20W) - Damping force at 0.1 m/s, rebound/compression, N - 716/211
Toyota Alphard (ATH20W) - Vehicle height (highest - lowest), mm - -38(0 - -58)
Toyota Alphard (GGH20W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Alphard (GGH20W) - Spring free height, mm - 250(Barrel)
Toyota Alphard (GGH20W) - Damping force at 0.1 m/s, rebound/compression, N - 716/211
Toyota Alphard (GGH20W) - Vehicle height (highest - lowest), mm - -42(-6 - -64)
Toyota Alphard (GGH25W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Alphard (GGH25W) - Spring free height, mm - 250(Barrel)
Toyota Alphard (GGH25W) - Damping force at 0.1 m/s, rebound/compression, N - 716/211
Toyota Alphard (GGH25W) - Vehicle height (highest - lowest), mm - -42(-6 - -64)
Toyota Alphard (ANH20W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Alphard (ANH20W) - Spring free height, mm - 250(Barrel)
Toyota Alphard (ANH20W) - Damping force at 0.1 m/s, rebound/compression, N - 716/211
Toyota Alphard (ANH20W) - Vehicle height (highest - lowest), mm - -38(0 - -58)
Toyota Alphard (ANH25W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Alphard (ANH25W) - Spring free height, mm - 250(Barrel)
Toyota Alphard (ANH25W) - Damping force at 0.1 m/s, rebound/compression, N - 716/211
Toyota Alphard (ANH25W) - Vehicle height (highest - lowest), mm - -38(0 - -58)
Toyota Vellfire (ATH20W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Vellfire (ATH20W) - Spring free height, mm - 250(Barrel)
Toyota Vellfire (ATH20W) - Damping force at 0.1 m/s, rebound/compression, N - 716/211
Toyota Vellfire (ATH20W) - Vehicle height (highest - lowest), mm - -38(0 - -58)
Toyota Vellfire (GGH20W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Vellfire (GGH20W) - Spring free height, mm - 250(Barrel)
Toyota Vellfire (GGH20W) - Damping force at 0.1 m/s, rebound/compression, N - 716/211
Toyota Vellfire (GGH20W) - Vehicle height (highest - lowest), mm - -42(-6 - -64)
Toyota Vellfire (GGH25W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Vellfire (GGH25W) - Spring free height, mm - 250(Barrel)
Toyota Vellfire (GGH25W) - Damping force at 0.1 m/s, rebound/compression, N - 716/211
Toyota Vellfire (GGH25W) - Vehicle height (highest - lowest), mm - -42(-6 - -64)
Toyota Vellfire (ANH20W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Vellfire (ANH20W) - Spring free height, mm - 250(Barrel)
Toyota Vellfire (ANH20W) - Damping force at 0.1 m/s, rebound/compression, N - 716/211
Toyota Vellfire (ANH20W) - Vehicle height (highest - lowest), mm - -38(0 - -58)
Toyota Vellfire (ANH25W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Vellfire (ANH25W) - Spring free height, mm - 250(Barrel)
Toyota Vellfire (ANH25W) - Damping force at 0.1 m/s, rebound/compression, N - 716/211
Toyota Vellfire (ANH25W) - Vehicle height (highest - lowest), mm - -38(0 - -58)

REAR FEATURES
Toyota Alphard (ATH20W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Alphard (ATH20W) - Spring free height, mm - Special
Toyota Alphard (ATH20W) - Damping force at 0.1 m/s, rebound/compression, N - 461/147
Toyota Alphard (ATH20W) - Vehicle height (highest - lowest), mm - -37(-16 - -68)
Toyota Alphard (GGH20W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Alphard (GGH20W) - Spring free height, mm - Special
Toyota Alphard (GGH20W) - Damping force at 0.1 m/s, rebound/compression, N - 461/147
Toyota Alphard (GGH20W) - Vehicle height (highest - lowest), mm - -41(-20 - -72)
Toyota Alphard (GGH25W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Alphard (GGH25W) - Spring free height, mm - Special
Toyota Alphard (GGH25W) - Damping force at 0.1 m/s, rebound/compression, N - 461/147
Toyota Alphard (GGH25W) - Vehicle height (highest - lowest), mm - -41(-20 - -72)
Toyota Alphard (ANH20W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Alphard (ANH20W) - Spring free height, mm - Special
Toyota Alphard (ANH20W) - Damping force at 0.1 m/s, rebound/compression, N - 461/147
Toyota Alphard (ANH20W) - Vehicle height (highest - lowest), mm - -37(-16 - -68)
Toyota Alphard (ANH25W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Alphard (ANH25W) - Spring free height, mm - Special
Toyota Alphard (ANH25W) - Damping force at 0.1 m/s, rebound/compression, N - 461/147
Toyota Alphard (ANH25W) - Vehicle height (highest - lowest), mm - -37(-16 - -68)
Toyota Vellfire (ATH20W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Vellfire (ATH20W) - Spring free height, mm - Special
Toyota Vellfire (ATH20W) - Damping force at 0.1 m/s, rebound/compression, N - 461/147
Toyota Vellfire (ATH20W) - Vehicle height (highest - lowest), mm - -37(-16 - -68)
Toyota Vellfire (GGH20W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Vellfire (GGH20W) - Spring free height, mm - Special
Toyota Vellfire (GGH20W) - Damping force at 0.1 m/s, rebound/compression, N - 461/147
Toyota Vellfire (GGH20W) - Vehicle height (highest - lowest), mm - -41(-20 - -72)
Toyota Vellfire (GGH25W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Vellfire (GGH25W) - Spring free height, mm - Special
Toyota Vellfire (GGH25W) - Damping force at 0.1 m/s, rebound/compression, N - 461/147
Toyota Vellfire (GGH25W) - Vehicle height (highest - lowest), mm - -41(-20 - -72)
Toyota Vellfire (ANH20W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Vellfire (ANH20W) - Spring free height, mm - Special
Toyota Vellfire (ANH20W) - Damping force at 0.1 m/s, rebound/compression, N - 461/147
Toyota Vellfire (ANH20W) - Vehicle height (highest - lowest), mm - -37(-16 - -68)
Toyota Vellfire (ANH25W) - Spring rate N/mm (kgf/mm) - 72(7.3)
Toyota Vellfire (ANH25W) - Spring free height, mm - Special
Toyota Vellfire (ANH25W) - Damping force at 0.1 m/s, rebound/compression, N - 461/147
Toyota Vellfire (ANH25W) - Vehicle height (highest - lowest), mm - -37(-16 - -68)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT038.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
