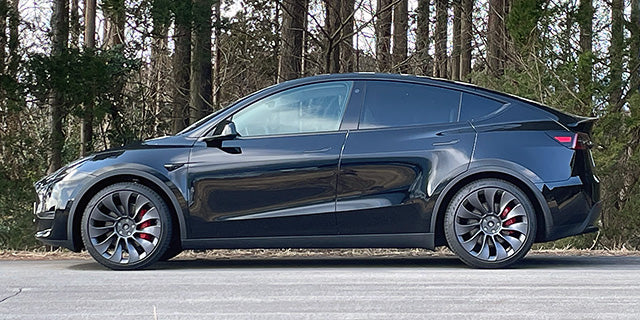

HKS Hipermax S Coilovers Tesla Model Y (YL3YPT) 80330-AA002P

80330-AA002P

FITMENT
Tesla Model Y (YL3YPT) 2022-

GENERAL FEATURES
Series - S
Tesla Model Y (YL3YPT) - Engine - 3D3-3D6 / Make to order item Front Upper Mount Pillow ball type. Only for 4WD.
Additional manufacturer specification data follows below.

FRONT FEATURES
Tesla Model Y (YL3YPT) - Spring rate N/mm (kgf/mm) - 78(8)
Tesla Model Y (YL3YPT) - Spring free height, mm - 250
Tesla Model Y (YL3YPT) - Damping force at 0.1 m/s, rebound/compression, N - 549/348
Tesla Model Y (YL3YPT) - Vehicle height (highest - lowest), mm - -29(0 - -71)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 78 ( 8.0 )
Free height (mm) - 250
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±10 ( 1 )
Damping force (Rebound/Damping)N* - 549 / 348
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 56 / 50

REAR FEATURES
Tesla Model Y (YL3YPT) - Spring rate N/mm (kgf/mm) - 88(9)
Tesla Model Y (YL3YPT) - Spring free height, mm - Special
Tesla Model Y (YL3YPT) - Damping force at 0.1 m/s, rebound/compression, N - 287/442
Tesla Model Y (YL3YPT) - Vehicle height (highest - lowest), mm - -26(0 - -63)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 88 ( 9.0 )
Free height (mm) - Not fitted / not applicable
Spring type - Special shape
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 287 / 422
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 78 / 69

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AA002P.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
