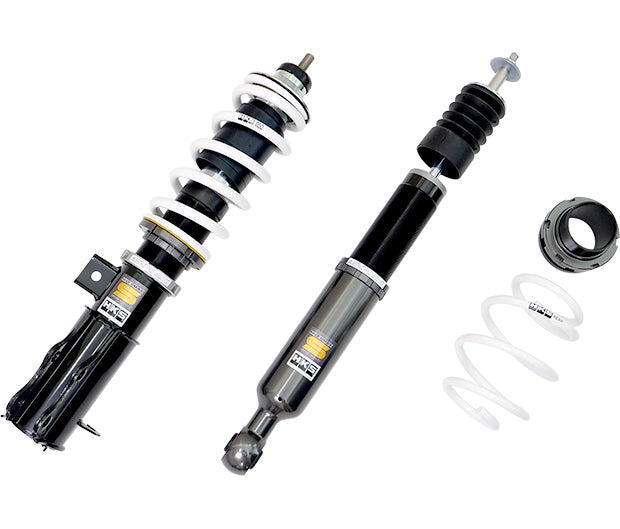

HKS Hipermax S Coilovers Suzuki Swift (ZC13S) / Suzuki Swift Sport (ZC33S) 80330-AS004

80330-AS004

FITMENT
Suzuki Swift (ZC13S) 2017-2023
Suzuki Swift Sport (ZC33S) 2017-2025

GENERAL FEATURES
Series - S
Suzuki Swift (ZC13S) - Engine - K10C(TURBO) / Vehicle height data is measured on SWIFT SPORT (ZC33S).
Suzuki Swift Sport (ZC33S) - Engine - K14C(TURBO)

FRONT FEATURES
Suzuki Swift (ZC13S) - Spring rate N/mm (kgf/mm) - 49(5)
Suzuki Swift (ZC13S) - Spring free height, mm - 200(Barrel)
Suzuki Swift (ZC13S) - Damping force at 0.1 m/s, rebound/compression, N - 417/245
Suzuki Swift (ZC13S) - Vehicle height (highest - lowest), mm - -40(0 - -61)
Suzuki Swift Sport (ZC33S) - Spring rate N/mm (kgf/mm) - 49(5)
Suzuki Swift Sport (ZC33S) - Spring free height, mm - 200(Barrel)
Suzuki Swift Sport (ZC33S) - Damping force at 0.1 m/s, rebound/compression, N - 417/245
Suzuki Swift Sport (ZC33S) - Vehicle height (highest - lowest), mm - -40(0 - -61)

REAR FEATURES
Suzuki Swift (ZC13S) - Spring rate N/mm (kgf/mm) - 29(3)
Suzuki Swift (ZC13S) - Spring free height, mm - Special
Suzuki Swift (ZC13S) - Damping force at 0.1 m/s, rebound/compression, N - 265/177
Suzuki Swift (ZC13S) - Vehicle height (highest - lowest), mm - -35(-15 - -59)
Suzuki Swift Sport (ZC33S) - Spring rate N/mm (kgf/mm) - 29(3)
Suzuki Swift Sport (ZC33S) - Spring free height, mm - Special
Suzuki Swift Sport (ZC33S) - Damping force at 0.1 m/s, rebound/compression, N - 265/177
Suzuki Swift Sport (ZC33S) - Vehicle height (highest - lowest), mm - -35(-15 - -59)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AS004.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
