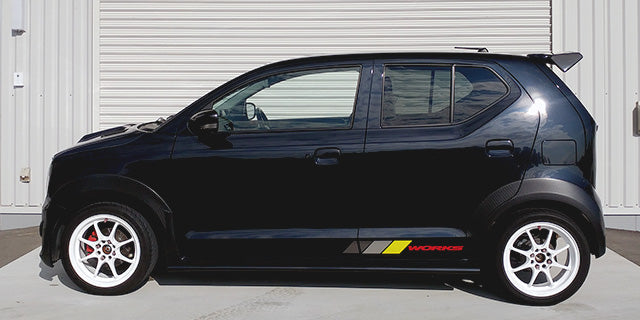

HKS Hipermax S Coilovers Suzuki Alto Works (HA36S) 80330-AS005

80330-AS005

FITMENT
Suzuki Alto Works (HA36S) 2015-2021

GENERAL FEATURES
Series - S
Suzuki Alto Works (HA36S) - Engine - R06A / Make to order item For 4WD
Additional manufacturer specification data follows below.

FRONT FEATURES
Suzuki Alto Works (HA36S) - Spring rate N/mm (kgf/mm) - 29(3)
Suzuki Alto Works (HA36S) - Spring free height, mm - 220(Barrel)
Suzuki Alto Works (HA36S) - Damping force at 0.1 m/s, rebound/compression, N - 284/147
Suzuki Alto Works (HA36S) - Vehicle height (highest - lowest), mm - -33(-1 - -58)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Stock
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 29 ( 3.0 )
Free height (mm) - 220
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - +10 ( 1 )
Damping force (Rebound/Damping)N* - 284 / 147
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 55 / 58

REAR FEATURES
Suzuki Alto Works (HA36S) - Spring rate N/mm (kgf/mm) - 27(2.8)
Suzuki Alto Works (HA36S) - Spring free height, mm - Special
Suzuki Alto Works (HA36S) - Damping force at 0.1 m/s, rebound/compression, N - 152/147
Suzuki Alto Works (HA36S) - Vehicle height (highest - lowest), mm - -30(-20 - -40)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - ×
Upper mount - Stock
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 27 ( 2.8 )
Free height (mm) - Not fitted / not applicable
Spring type - Special shape
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 152 / 147
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 58 / 65

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AS005.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
