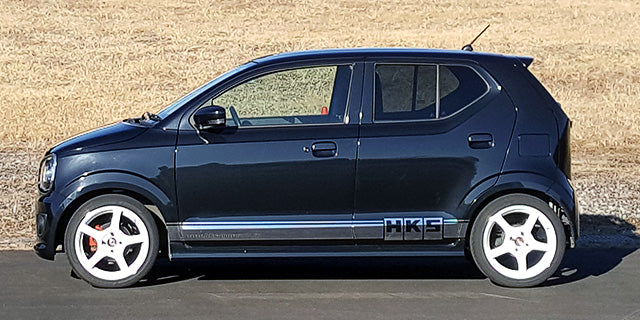

HKS Hipermax S Coilovers Suzuki Alto Works (HA36S) 80330-AS003

80330-AS003

FITMENT
Suzuki Alto Works (HA36S) 2015-2021

GENERAL FEATURES
Series - S
Suzuki Alto Works (HA36S) - Engine - R06A / Not applicable for 4WD.
Additional manufacturer specification data follows below.

FRONT FEATURES
Suzuki Alto Works (HA36S) - Spring rate N/mm (kgf/mm) - 29(3)
Suzuki Alto Works (HA36S) - Spring free height, mm - 220(Barrel)
Suzuki Alto Works (HA36S) - Damping force at 0.1 m/s, rebound/compression, N - 240/157
Suzuki Alto Works (HA36S) - Vehicle height (highest - lowest), mm - -25(-3 - -48)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Stock
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 29 ( 3.0 )
Free height (mm) - 220
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - +10 ( 1 )
Damping force (Rebound/Damping)N* - 240 / 157
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 53 / 60

REAR FEATURES
Suzuki Alto Works (HA36S) - Spring rate N/mm (kgf/mm) - 25(2.5)
Suzuki Alto Works (HA36S) - Spring free height, mm - /Special
Suzuki Alto Works (HA36S) - Damping force at 0.1 m/s, rebound/compression, N - 137/142
Suzuki Alto Works (HA36S) - Vehicle height (highest - lowest), mm - -22(-4 - -51)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Stock
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 25 ( 2.5 )
Free height (mm) - Not fitted / not applicable
Spring type - Special shape
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 137 / 142
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 60 / 66

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AS003.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
