GENERAL FEATURES Series - S Subaru WRX S4 (VAG) - Engine - FA20(TURBO) / Front Upper Mount Pillow ball type Subaru WRX STI (VAB) - Engine - EJ20 / Front Upper Mount Pillow ball type
FRONT FEATURES Subaru WRX S4 (VAG) - Spring rate N/mm (kgf/mm) - 88(9) Subaru WRX S4 (VAG) - Spring free height, mm - 220(Barrel) Subaru WRX S4 (VAG) - Damping force at 0.1 m/s, rebound/compression, N - 726/456 Subaru WRX S4 (VAG) - Vehicle height (highest - lowest), mm - -25(0 - -37) Subaru WRX STI (VAB) - Spring rate N/mm (kgf/mm) - 88(9) Subaru WRX STI (VAB) - Spring free height, mm - 220(Barrel) Subaru WRX STI (VAB) - Damping force at 0.1 m/s, rebound/compression, N - 726/456 Subaru WRX STI (VAB) - Vehicle height (highest - lowest), mm - -19(0 - -31)
REAR FEATURES Subaru WRX S4 (VAG) - Spring rate N/mm (kgf/mm) - 69(7) Subaru WRX S4 (VAG) - Spring free height, mm - 170 Subaru WRX S4 (VAG) - Damping force at 0.1 m/s, rebound/compression, N - 364/319 Subaru WRX S4 (VAG) - Vehicle height (highest - lowest), mm - -17(+1 - -65) Subaru WRX STI (VAB) - Spring rate N/mm (kgf/mm) - 69(7) Subaru WRX STI (VAB) - Spring free height, mm - 170 Subaru WRX STI (VAB) - Damping force at 0.1 m/s, rebound/compression, N - 364/319 Subaru WRX STI (VAB) - Vehicle height (highest - lowest), mm - -14(0 - -62)

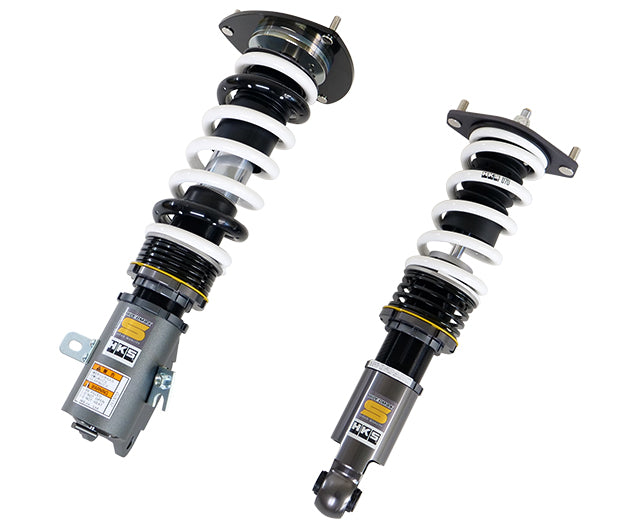

PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AF009P.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
