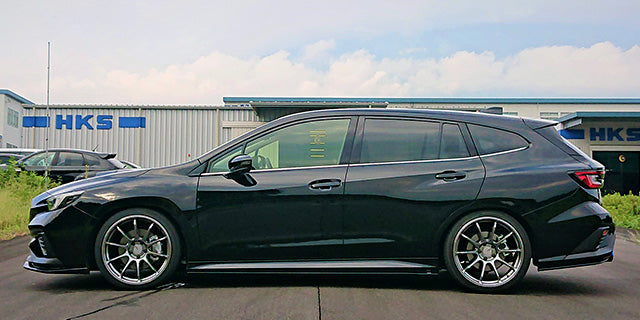

HKS Hipermax S Coilovers Subaru Levorg (VNH) 80330-AF021C

80330-AF021C

FITMENT
Subaru Levorg (VNH) 2021-

GENERAL FEATURES
Series - S
Subaru Levorg (VNH) - Engine - FA24(TURBO) / Make to order item Only for STI Sport R and STI Sport R EX. The suspension error canceller is standard equipment.

FRONT FEATURES
Subaru Levorg (VNH) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Levorg (VNH) - Spring free height, mm - 200(Barrel)
Subaru Levorg (VNH) - Damping force at 0.1 m/s, rebound/compression, N - 333/382
Subaru Levorg (VNH) - Vehicle height (highest - lowest), mm - -29(0 - -47)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 69 ( 7.0 )
Free height (mm) - 200
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 333 / 382
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 53 / 53

REAR FEATURES
Subaru Levorg (VNH) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Levorg (VNH) - Spring free height, mm - 200
Subaru Levorg (VNH) - Damping force at 0.1 m/s, rebound/compression, N - 294/412
Subaru Levorg (VNH) - Vehicle height (highest - lowest), mm - -29(0 - -58)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 59 ( 6.0 )
Free height (mm) - 200
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 294 / 412
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 67 / 49

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AF021C.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
