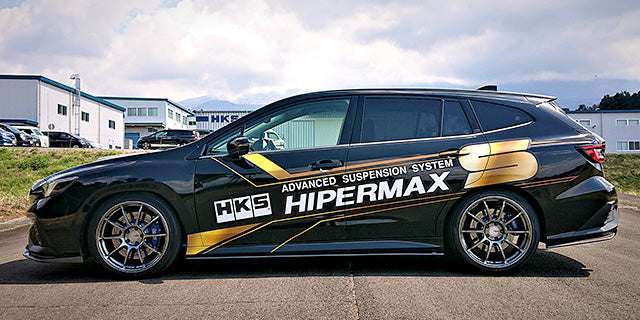

HKS Hipermax S Coilovers Subaru Levorg (VN5) 80330-AF019C

80330-AF019C

FITMENT
Subaru Levorg (VN5) 2020-

GENERAL FEATURES
Series - S
Subaru Levorg (VN5) - Engine - CB18(TURBO) / Make to order item

FRONT FEATURES
Subaru Levorg (VN5) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Levorg (VN5) - Spring free height, mm - 200(Barrel)
Subaru Levorg (VN5) - Damping force at 0.1 m/s, rebound/compression, N - 314/392
Subaru Levorg (VN5) - Vehicle height (highest - lowest), mm - -29(0 - -57)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 59 ( 6.0 )
Free height (mm) - 200
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 314 / 392
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 60 / 46

REAR FEATURES
Subaru Levorg (VN5) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Levorg (VN5) - Spring free height, mm - 170
Subaru Levorg (VN5) - Damping force at 0.1 m/s, rebound/compression, N - 353/373
Subaru Levorg (VN5) - Vehicle height (highest - lowest), mm - -32(0 - -74)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 59 ( 6.0 )
Free height (mm) - 170
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 353 / 373
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 69 / 47

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AF019C.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
