GENERAL FEATURES Series - S Subaru Levorg (VMG) - Engine - FA20(TURBO) Subaru Levorg (VM4) - Engine - FB16(TURBO) / Height data is based on VMG.
FRONT FEATURES Subaru Levorg (VMG) - Spring rate N/mm (kgf/mm) - 59(6) Subaru Levorg (VMG) - Spring free height, mm - 250(Barrel) Subaru Levorg (VMG) - Damping force at 0.1 m/s, rebound/compression, N - 324/304 Subaru Levorg (VMG) - Vehicle height (highest - lowest), mm - -23(0 - -42) Subaru Levorg (VM4) - Spring rate N/mm (kgf/mm) - 59(6) Subaru Levorg (VM4) - Spring free height, mm - 250(Barrel) Subaru Levorg (VM4) - Damping force at 0.1 m/s, rebound/compression, N - 324/304 Subaru Levorg (VM4) - Vehicle height (highest - lowest), mm - -23(0 - -42)
REAR FEATURES Subaru Levorg (VMG) - Spring rate N/mm (kgf/mm) - 59(6) Subaru Levorg (VMG) - Spring free height, mm - 200 Subaru Levorg (VMG) - Damping force at 0.1 m/s, rebound/compression, N - 383/358 Subaru Levorg (VMG) - Vehicle height (highest - lowest), mm - -30(0 - -70) Subaru Levorg (VM4) - Spring rate N/mm (kgf/mm) - 59(6) Subaru Levorg (VM4) - Spring free height, mm - 200 Subaru Levorg (VM4) - Damping force at 0.1 m/s, rebound/compression, N - 383/358 Subaru Levorg (VM4) - Vehicle height (highest - lowest), mm - -30(0 - -70)

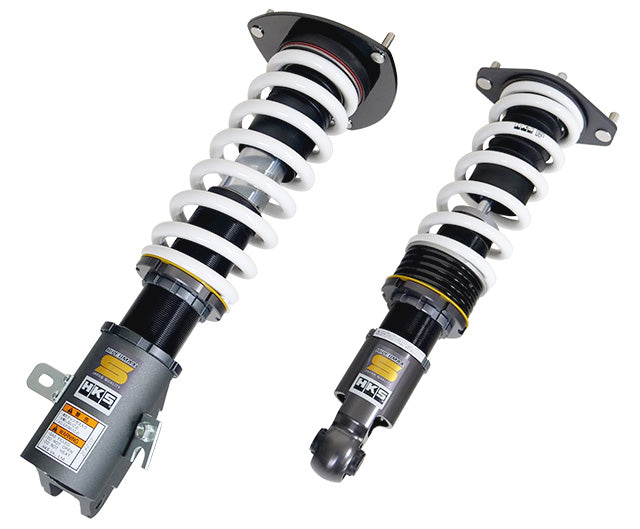

PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AF007.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
