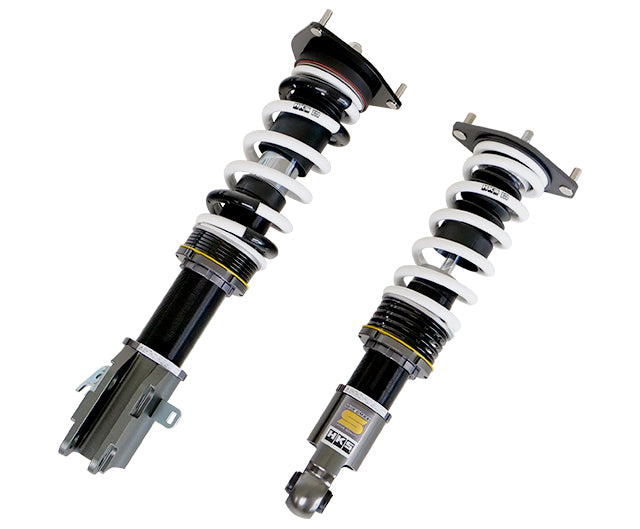

HKS Hipermax S Coilovers Subaru Legacy B4 (BMG) / Subaru Legacy B4 (BMM) / Subaru Legacy B4 (BM9) / Subaru Legacy Touring Wagon (BRG) / Subaru Legacy Touring Wagon (BRM) / Subaru Legacy Touring Wagon (BR9) 80330-AF004

80330-AF004

FITMENT
Subaru Legacy B4 (BMG) 2012-2014
Subaru Legacy B4 (BMM) 2012-2014
Subaru Legacy B4 (BM9) 2009-2013
Subaru Legacy Touring Wagon (BRG) 2012-2014
Subaru Legacy Touring Wagon (BRM) 2012-2014
Subaru Legacy Touring Wagon (BR9) 2009-2013

GENERAL FEATURES
Series - S
Subaru Legacy B4 (BMG) - Engine - FA20(TURBO) / Vehicle height data is measured on BRG.
Subaru Legacy B4 (BMM) - Engine - FB25(NA) / Vehicle height data is measured on BR9.
Subaru Legacy B4 (BM9) - Engine - EJ25(NA) / Vehicle height data is measured on BR9.
Subaru Legacy B4 (BM9) - Engine - EJ25(TURBO) / Vehicle height data is measured on BR9.
Subaru Legacy Touring Wagon (BRG) - Engine - FA20(TURBO)
Subaru Legacy Touring Wagon (BRM) - Engine - FB25(NA) / Vehicle height data is measured on BR9.
Subaru Legacy Touring Wagon (BR9) - Engine - EJ25(NA)
Subaru Legacy Touring Wagon (BR9) - Engine - EJ25(TURBO)

FRONT FEATURES
Subaru Legacy B4 (BMG) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Legacy B4 (BMG) - Spring free height, mm - 220(Barrel)
Subaru Legacy B4 (BMG) - Damping force at 0.1 m/s, rebound/compression, N - 339/324
Subaru Legacy B4 (BMG) - Vehicle height (highest - lowest), mm - -40(-13 - -88)
Subaru Legacy B4 (BMM) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Legacy B4 (BMM) - Spring free height, mm - 220(Barrel)
Subaru Legacy B4 (BMM) - Damping force at 0.1 m/s, rebound/compression, N - 339/324
Subaru Legacy B4 (BMM) - Vehicle height (highest - lowest), mm - -48(-21 - -101)
Subaru Legacy B4 (BM9) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Legacy B4 (BM9) - Spring free height, mm - 220(Barrel)
Subaru Legacy B4 (BM9) - Damping force at 0.1 m/s, rebound/compression, N - 339/324
Subaru Legacy B4 (BM9) - Vehicle height (highest - lowest), mm - -48(-21 - -101)
Subaru Legacy Touring Wagon (BRG) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Legacy Touring Wagon (BRG) - Spring free height, mm - 220(Barrel)
Subaru Legacy Touring Wagon (BRG) - Damping force at 0.1 m/s, rebound/compression, N - 339/324
Subaru Legacy Touring Wagon (BRG) - Vehicle height (highest - lowest), mm - -40(-13 - -88)
Subaru Legacy Touring Wagon (BRM) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Legacy Touring Wagon (BRM) - Spring free height, mm - 220(Barrel)
Subaru Legacy Touring Wagon (BRM) - Damping force at 0.1 m/s, rebound/compression, N - 339/324
Subaru Legacy Touring Wagon (BRM) - Vehicle height (highest - lowest), mm - -48(-21 - -101)
Subaru Legacy Touring Wagon (BR9) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Legacy Touring Wagon (BR9) - Spring free height, mm - 220(Barrel)
Subaru Legacy Touring Wagon (BR9) - Damping force at 0.1 m/s, rebound/compression, N - 339/324
Subaru Legacy Touring Wagon (BR9) - Vehicle height (highest - lowest), mm - -48(-21 - -101)

REAR FEATURES
Subaru Legacy B4 (BMG) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Legacy B4 (BMG) - Spring free height, mm - 200
Subaru Legacy B4 (BMG) - Damping force at 0.1 m/s, rebound/compression, N - 397/363
Subaru Legacy B4 (BMG) - Vehicle height (highest - lowest), mm - -38(-4 - -60)
Subaru Legacy B4 (BMM) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Legacy B4 (BMM) - Spring free height, mm - 200
Subaru Legacy B4 (BMM) - Damping force at 0.1 m/s, rebound/compression, N - 397/363
Subaru Legacy B4 (BMM) - Vehicle height (highest - lowest), mm - -42(-8 - -74)
Subaru Legacy B4 (BM9) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Legacy B4 (BM9) - Spring free height, mm - 200
Subaru Legacy B4 (BM9) - Damping force at 0.1 m/s, rebound/compression, N - 397/363
Subaru Legacy B4 (BM9) - Vehicle height (highest - lowest), mm - -42(-8 - -74)
Subaru Legacy Touring Wagon (BRG) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Legacy Touring Wagon (BRG) - Spring free height, mm - 200
Subaru Legacy Touring Wagon (BRG) - Damping force at 0.1 m/s, rebound/compression, N - 397/363
Subaru Legacy Touring Wagon (BRG) - Vehicle height (highest - lowest), mm - -38(-4 - -60)
Subaru Legacy Touring Wagon (BRM) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Legacy Touring Wagon (BRM) - Spring free height, mm - 200
Subaru Legacy Touring Wagon (BRM) - Damping force at 0.1 m/s, rebound/compression, N - 397/363
Subaru Legacy Touring Wagon (BRM) - Vehicle height (highest - lowest), mm - -42(-8 - -74)
Subaru Legacy Touring Wagon (BR9) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru Legacy Touring Wagon (BR9) - Spring free height, mm - 200
Subaru Legacy Touring Wagon (BR9) - Damping force at 0.1 m/s, rebound/compression, N - 397/363
Subaru Legacy Touring Wagon (BR9) - Vehicle height (highest - lowest), mm - -42(-8 - -74)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AF004.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
