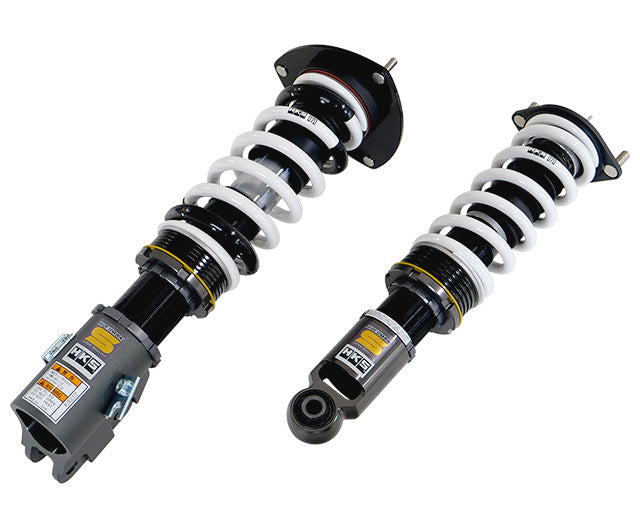

HKS Hipermax S Coilovers Subaru Legacy B4 (BL9) / Subaru Legacy B4 (BL5) / Subaru Legacy B4 (BLE) / Subaru Legacy Touring Wagon (BP9) / Subaru Legacy Touring Wagon (BP5) / Subaru Legacy Touring Wagon (BPE) 80330-AF005

80330-AF005

FITMENT
Subaru Legacy B4 (BL9) 2007-2008
Subaru Legacy B4 (BL5) 2003-2009
Subaru Legacy B4 (BLE) 2003-2009
Subaru Legacy Touring Wagon (BP9) 2007-2009
Subaru Legacy Touring Wagon (BP5) 2003-2009
Subaru Legacy Touring Wagon (BPE) 2003-2009

GENERAL FEATURES
Series - S
Subaru Legacy B4 (BL9) - Engine - EJ25(NA) / Height data is based on BL5.
Subaru Legacy B4 (BL5) - Engine - EJ20
Subaru Legacy B4 (BLE) - Engine - EZ30 / Height data is based on BL5.
Subaru Legacy Touring Wagon (BP9) - Engine - EJ25(NA) / Height data is based on BP5.
Subaru Legacy Touring Wagon (BP5) - Engine - EJ20
Subaru Legacy Touring Wagon (BPE) - Engine - EZ30 / Height data is based on BP5.

FRONT FEATURES
Subaru Legacy B4 (BL9) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Legacy B4 (BL9) - Spring free height, mm - 200(Barrel)
Subaru Legacy B4 (BL9) - Damping force at 0.1 m/s, rebound/compression, N - 343/314
Subaru Legacy B4 (BL9) - Vehicle height (highest - lowest), mm - -35(-6 - -68)
Subaru Legacy B4 (BL5) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Legacy B4 (BL5) - Spring free height, mm - 200(Barrel)
Subaru Legacy B4 (BL5) - Damping force at 0.1 m/s, rebound/compression, N - 343/314
Subaru Legacy B4 (BL5) - Vehicle height (highest - lowest), mm - -35(-6 - -68)
Subaru Legacy B4 (BLE) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Legacy B4 (BLE) - Spring free height, mm - 200(Barrel)
Subaru Legacy B4 (BLE) - Damping force at 0.1 m/s, rebound/compression, N - 343/314
Subaru Legacy B4 (BLE) - Vehicle height (highest - lowest), mm - -35(-6 - -68)
Subaru Legacy Touring Wagon (BP9) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Legacy Touring Wagon (BP9) - Spring free height, mm - 200(Barrel)
Subaru Legacy Touring Wagon (BP9) - Damping force at 0.1 m/s, rebound/compression, N - 343/314
Subaru Legacy Touring Wagon (BP9) - Vehicle height (highest - lowest), mm - -29(0 - -62)
Subaru Legacy Touring Wagon (BP5) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Legacy Touring Wagon (BP5) - Spring free height, mm - 200(Barrel)
Subaru Legacy Touring Wagon (BP5) - Damping force at 0.1 m/s, rebound/compression, N - 343/314
Subaru Legacy Touring Wagon (BP5) - Vehicle height (highest - lowest), mm - -29(0 - -62)
Subaru Legacy Touring Wagon (BPE) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Legacy Touring Wagon (BPE) - Spring free height, mm - 200(Barrel)
Subaru Legacy Touring Wagon (BPE) - Damping force at 0.1 m/s, rebound/compression, N - 343/314
Subaru Legacy Touring Wagon (BPE) - Vehicle height (highest - lowest), mm - -29(0 - -62)

REAR FEATURES
Subaru Legacy B4 (BL9) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Legacy B4 (BL9) - Spring free height, mm - 200
Subaru Legacy B4 (BL9) - Damping force at 0.1 m/s, rebound/compression, N - 397/358
Subaru Legacy B4 (BL9) - Vehicle height (highest - lowest), mm - -32(-4 - -83)
Subaru Legacy B4 (BL5) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Legacy B4 (BL5) - Spring free height, mm - 200
Subaru Legacy B4 (BL5) - Damping force at 0.1 m/s, rebound/compression, N - 397/358
Subaru Legacy B4 (BL5) - Vehicle height (highest - lowest), mm - -32(-4 - -83)
Subaru Legacy B4 (BLE) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Legacy B4 (BLE) - Spring free height, mm - 200
Subaru Legacy B4 (BLE) - Damping force at 0.1 m/s, rebound/compression, N - 397/358
Subaru Legacy B4 (BLE) - Vehicle height (highest - lowest), mm - -32(-4 - -83)
Subaru Legacy Touring Wagon (BP9) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Legacy Touring Wagon (BP9) - Spring free height, mm - 200
Subaru Legacy Touring Wagon (BP9) - Damping force at 0.1 m/s, rebound/compression, N - 397/358
Subaru Legacy Touring Wagon (BP9) - Vehicle height (highest - lowest), mm - -29(-1 - -80)
Subaru Legacy Touring Wagon (BP5) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Legacy Touring Wagon (BP5) - Spring free height, mm - 200
Subaru Legacy Touring Wagon (BP5) - Damping force at 0.1 m/s, rebound/compression, N - 397/358
Subaru Legacy Touring Wagon (BP5) - Vehicle height (highest - lowest), mm - -29(-1 - -80)
Subaru Legacy Touring Wagon (BPE) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Legacy Touring Wagon (BPE) - Spring free height, mm - 200
Subaru Legacy Touring Wagon (BPE) - Damping force at 0.1 m/s, rebound/compression, N - 397/358
Subaru Legacy Touring Wagon (BPE) - Vehicle height (highest - lowest), mm - -29(-1 - -80)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AF005.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
