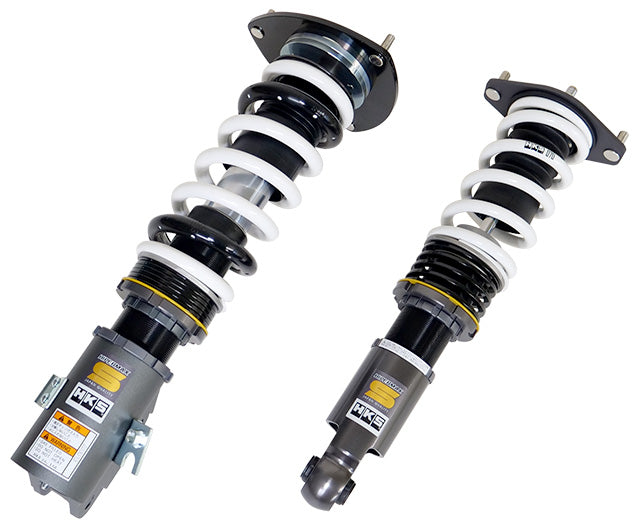

HKS Hipermax S Coilovers Subaru Impreza WRX STI (GVF) / Subaru Impreza WRX STI (GVB) / Subaru Impreza WRX STI (GRF) / Subaru Impreza WRX STI (GRB) 80330-AF001P

80330-AF001P

FITMENT
Subaru Impreza WRX STI (GVF) 2010-2014
Subaru Impreza WRX STI (GVB) 2010-2014
Subaru Impreza WRX STI (GRF) 2009-2014
Subaru Impreza WRX STI (GRB) 2007-2014

GENERAL FEATURES
Series - S
Subaru Impreza WRX STI (GVF) - Engine - EJ25(TURBO) / Front Upper Mount Pillow ball type
Subaru Impreza WRX STI (GVB) - Engine - EJ20(TURBO) / Front Upper Mount Pillow ball type. Vehicle height data is measured on GVF.
Subaru Impreza WRX STI (GRF) - Engine - EJ25(TURBO) / Front Upper Mount Pillow ball type. Vehicle height data is measured on GRB.
Subaru Impreza WRX STI (GRB) - Engine - EJ20(TURBO) / Front Upper Mount Pillow ball type

FRONT FEATURES
Subaru Impreza WRX STI (GVF) - Spring rate N/mm (kgf/mm) - 88(9)
Subaru Impreza WRX STI (GVF) - Spring free height, mm - 220(Barrel)
Subaru Impreza WRX STI (GVF) - Damping force at 0.1 m/s, rebound/compression, N - 667/549
Subaru Impreza WRX STI (GVF) - Vehicle height (highest - lowest), mm - -33(-11 - -60)
Subaru Impreza WRX STI (GVB) - Spring rate N/mm (kgf/mm) - 88(9)
Subaru Impreza WRX STI (GVB) - Spring free height, mm - 220(Barrel)
Subaru Impreza WRX STI (GVB) - Damping force at 0.1 m/s, rebound/compression, N - 667/549
Subaru Impreza WRX STI (GVB) - Vehicle height (highest - lowest), mm - -33(-11 - -60)
Subaru Impreza WRX STI (GRF) - Spring rate N/mm (kgf/mm) - 88(9)
Subaru Impreza WRX STI (GRF) - Spring free height, mm - 220(Barrel)
Subaru Impreza WRX STI (GRF) - Damping force at 0.1 m/s, rebound/compression, N - 667/549
Subaru Impreza WRX STI (GRF) - Vehicle height (highest - lowest), mm - -31(-5 - -58)
Subaru Impreza WRX STI (GRB) - Spring rate N/mm (kgf/mm) - 88(9)
Subaru Impreza WRX STI (GRB) - Spring free height, mm - 220(Barrel)
Subaru Impreza WRX STI (GRB) - Damping force at 0.1 m/s, rebound/compression, N - 667/549
Subaru Impreza WRX STI (GRB) - Vehicle height (highest - lowest), mm - -31(-5 - -58)

REAR FEATURES
Subaru Impreza WRX STI (GVF) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Impreza WRX STI (GVF) - Spring free height, mm - 170
Subaru Impreza WRX STI (GVF) - Damping force at 0.1 m/s, rebound/compression, N - 353/382
Subaru Impreza WRX STI (GVF) - Vehicle height (highest - lowest), mm - -29(0 - -65)
Subaru Impreza WRX STI (GVB) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Impreza WRX STI (GVB) - Spring free height, mm - 170
Subaru Impreza WRX STI (GVB) - Damping force at 0.1 m/s, rebound/compression, N - 353/382
Subaru Impreza WRX STI (GVB) - Vehicle height (highest - lowest), mm - -29(0 - -65)
Subaru Impreza WRX STI (GRF) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Impreza WRX STI (GRF) - Spring free height, mm - 170
Subaru Impreza WRX STI (GRF) - Damping force at 0.1 m/s, rebound/compression, N - 353/382
Subaru Impreza WRX STI (GRF) - Vehicle height (highest - lowest), mm - -34(-5 - -70)
Subaru Impreza WRX STI (GRB) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Impreza WRX STI (GRB) - Spring free height, mm - 170
Subaru Impreza WRX STI (GRB) - Damping force at 0.1 m/s, rebound/compression, N - 353/382
Subaru Impreza WRX STI (GRB) - Vehicle height (highest - lowest), mm - -34(-5 - -70)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AF001P.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
