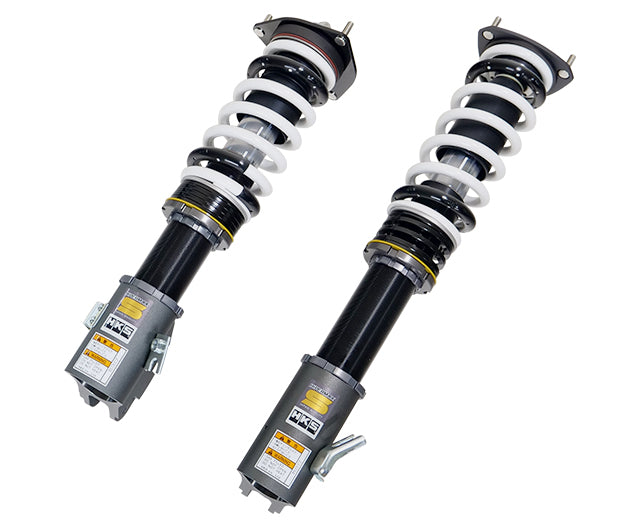

HKS Hipermax S Coilovers Subaru Impreza WRX (GDA) / Subaru Impreza WRX STI (GDB) / Subaru Impreza Sport Wagon (GGA) 80330-AF002

80330-AF002

FITMENT
Subaru Impreza WRX (GDA) 2000-2007
Subaru Impreza WRX STI (GDB) 2000-2004
Subaru Impreza Sport Wagon (GGA) 2000-2007

GENERAL FEATURES
Series - S
Subaru Impreza WRX (GDA) - Engine - EJ20(TURBO) / For applied model A-G. Height data is based on WRX STI(GDB).
Subaru Impreza WRX STI (GDB) - Engine - EJ20(TURBO) / For WRX STI, applied model A-D.
Subaru Impreza Sport Wagon (GGA) - Engine - EJ20(TURBO) / For WRX, applied model A-G. Height data is based on WRX STI.

FRONT FEATURES
Subaru Impreza WRX (GDA) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Impreza WRX (GDA) - Spring free height, mm - 220(Barrel)
Subaru Impreza WRX (GDA) - Damping force at 0.1 m/s, rebound/compression, N - 873/456
Subaru Impreza WRX (GDA) - Vehicle height (highest - lowest), mm - -36(-16 - -68)
Subaru Impreza WRX STI (GDB) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Impreza WRX STI (GDB) - Spring free height, mm - 220(Barrel)
Subaru Impreza WRX STI (GDB) - Damping force at 0.1 m/s, rebound/compression, N - 873/456
Subaru Impreza WRX STI (GDB) - Vehicle height (highest - lowest), mm - -36(-16 - -68)
Subaru Impreza Sport Wagon (GGA) - Spring rate N/mm (kgf/mm) - 69(7)
Subaru Impreza Sport Wagon (GGA) - Spring free height, mm - 220(Barrel)
Subaru Impreza Sport Wagon (GGA) - Damping force at 0.1 m/s, rebound/compression, N - 873/456
Subaru Impreza Sport Wagon (GGA) - Vehicle height (highest - lowest), mm - -36(-16 - -68)

REAR FEATURES
Subaru Impreza WRX (GDA) - Spring rate N/mm (kgf/mm) - 49(5)
Subaru Impreza WRX (GDA) - Spring free height, mm - 250(Barrel)
Subaru Impreza WRX (GDA) - Damping force at 0.1 m/s, rebound/compression, N - 314/280
Subaru Impreza WRX (GDA) - Vehicle height (highest - lowest), mm - -22(-5 - -86)
Subaru Impreza WRX STI (GDB) - Spring rate N/mm (kgf/mm) - 49(5)
Subaru Impreza WRX STI (GDB) - Spring free height, mm - 250(Barrel)
Subaru Impreza WRX STI (GDB) - Damping force at 0.1 m/s, rebound/compression, N - 314/280
Subaru Impreza WRX STI (GDB) - Vehicle height (highest - lowest), mm - -22(-5 - -86)
Subaru Impreza Sport Wagon (GGA) - Spring rate N/mm (kgf/mm) - 49(5)
Subaru Impreza Sport Wagon (GGA) - Spring free height, mm - 250(Barrel)
Subaru Impreza Sport Wagon (GGA) - Damping force at 0.1 m/s, rebound/compression, N - 314/280
Subaru Impreza Sport Wagon (GGA) - Vehicle height (highest - lowest), mm - -22(-5 - -86)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AF002.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
