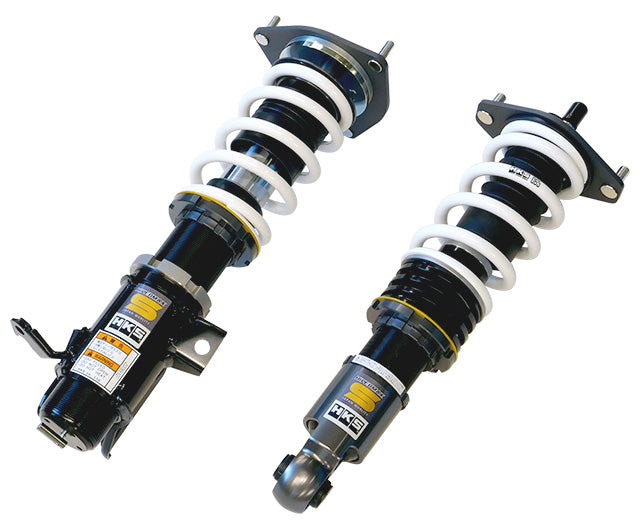

HKS Hipermax S Coilovers Subaru BRZ (ZD8) 80330-AF020P

80330-AF020P

FITMENT
Subaru BRZ (ZD8) 2021-

GENERAL FEATURES
Series - S
Subaru BRZ (ZD8) - Engine - FA24 / MT, with pillow ball upper mounts on the front.
Additional manufacturer specification data follows below.

FRONT FEATURES
Subaru BRZ (ZD8) - Spring rate N/mm (kgf/mm) - 49(5)
Subaru BRZ (ZD8) - Spring free height, mm - 170(Barrel)
Subaru BRZ (ZD8) - Damping force at 0.1 m/s, rebound/compression, N - 363/412
Subaru BRZ (ZD8) - Vehicle height (highest - lowest), mm - -27(0 - -49)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Spherical bearing
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 49 ( 5.0 )
Free height (mm) - 170
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - ±10 ( 1 ) ※1
Damping force (Rebound/Damping)N* - 363 / 412
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 42 / 57

REAR FEATURES
Subaru BRZ (ZD8) - Spring rate N/mm (kgf/mm) - 59(6)
Subaru BRZ (ZD8) - Spring free height, mm - 170
Subaru BRZ (ZD8) - Damping force at 0.1 m/s, rebound/compression, N - 397/363
Subaru BRZ (ZD8) - Vehicle height (highest - lowest), mm - -28(0 - -61)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 59 ( 6.0 )
Free height (mm) - 170
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - -10 ( 1 ),+20 ( 2 ) ※1
Damping force (Rebound/Damping)N* - 397 / 363
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 49 / 57

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AF020P.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
