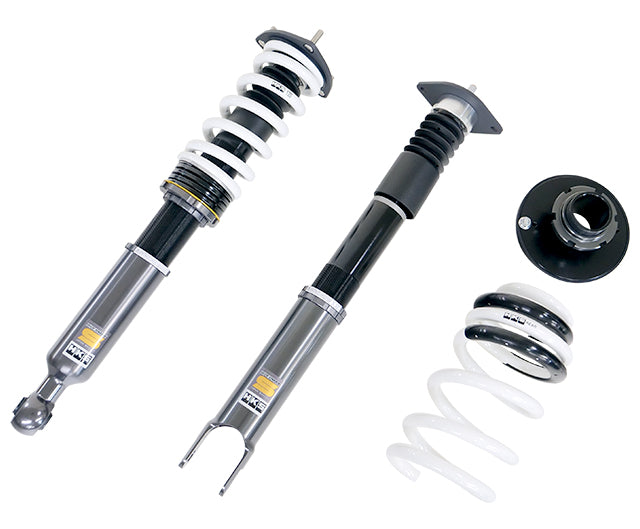

HKS Hipermax S Coilovers Nissan Fairlady Z (Z) (RZ34) 80330-AN018

80330-AN018

FITMENT
Nissan Fairlady Z (Z) (RZ34) 2022-

GENERAL FEATURES
Series - S
Nissan Fairlady Z (Z) (RZ34) - Engine - VR30DDTT / The data below is for MT Model.

FRONT FEATURES
Nissan Fairlady Z (Z) (RZ34) - Spring rate N/mm (kgf/mm) - 118(12)
Nissan Fairlady Z (Z) (RZ34) - Spring free height, mm - 200
Nissan Fairlady Z (Z) (RZ34) - Damping force at 0.1 m/s, rebound/compression, N - 1177/608
Nissan Fairlady Z (Z) (RZ34) - Vehicle height (highest - lowest), mm - -26(+11 - -57)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 118 ( 12.0 )
Free height (mm) - 200
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 )
Damping force (Rebound/Damping)N* - 1177 / 608
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 46 / 41

REAR FEATURES
Nissan Fairlady Z (Z) (RZ34) - Spring rate N/mm (kgf/mm) - 108(11)
Nissan Fairlady Z (Z) (RZ34) - Spring free height, mm - Special
Nissan Fairlady Z (Z) (RZ34) - Damping force at 0.1 m/s, rebound/compression, N - 682/407
Nissan Fairlady Z (Z) (RZ34) - Vehicle height (highest - lowest), mm - -26(-10 - -69)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 108 ( 11.0 )
Free height (mm) - Not fitted / not applicable
Spring type - Special shape
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 682 / 407
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 71 / 59

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AN018.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
