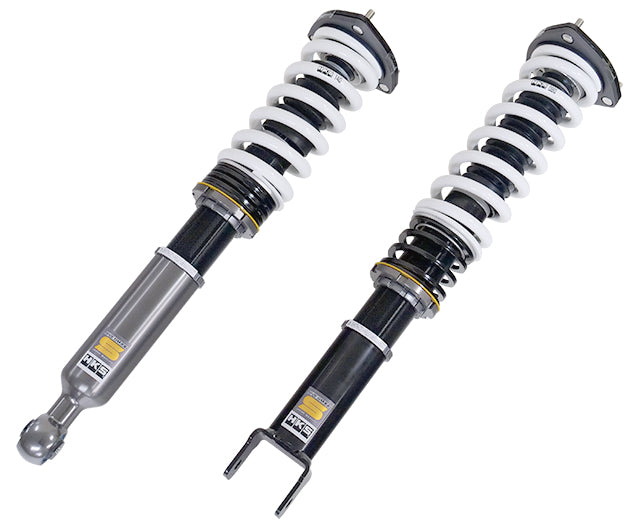

HKS Hipermax S Coilovers Nissan Skyline (RV37) 80330-AN017

80330-AN017

FITMENT
Nissan Skyline (RV37) 2019-

GENERAL FEATURES
Series - S
Nissan Skyline (RV37) - Engine - VR30DDTT / For 400R only 20GT-T is not confirmed. (as of August 2014.)
Additional manufacturer specification data follows below.

FRONT FEATURES
Nissan Skyline (RV37) - Spring rate N/mm (kgf/mm) - 137(14)
Nissan Skyline (RV37) - Spring free height, mm - 200
Nissan Skyline (RV37) - Damping force at 0.1 m/s, rebound/compression, N - 1350/450
Nissan Skyline (RV37) - Vehicle height (highest - lowest), mm - -19(0 - -45)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Yes
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 137 ( 14.0 )
Free height (mm) - 200
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 )
Damping force (Rebound/Damping)N* - 1350 / 450
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 52 / 47

REAR FEATURES
Nissan Skyline (RV37) - Spring rate N/mm (kgf/mm) - 78(8)
Nissan Skyline (RV37) - Spring free height, mm - 250
Nissan Skyline (RV37) - Damping force at 0.1 m/s, rebound/compression, N - 530/530
Nissan Skyline (RV37) - Vehicle height (highest - lowest), mm - -34(-15 - -58)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Yes
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 78 ( 8.0 )
Free height (mm) - 250
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 )
Damping force (Rebound/Damping)N* - 530 / 530
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 73 / 86

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AN017.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
