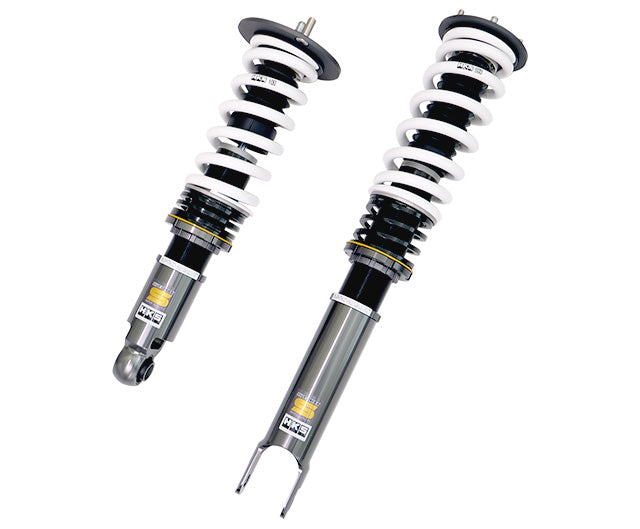

HKS Hipermax S Coilovers Nissan Skyline GT-R (BNR32) 80330-AN008
1 878 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80330-AN008
FITMENT Nissan Skyline GT-R (BNR32) 1989-1994
GENERAL FEATURES Series - S Nissan Skyline GT-R (BNR32) - Engine - RB26DETT Additional manufacturer specification data follows below.
FRONT FEATURES Nissan Skyline GT-R (BNR32) - Spring rate N/mm (kgf/mm) - 98(10) Nissan Skyline GT-R (BNR32) - Spring free height, mm - 200 Nissan Skyline GT-R (BNR32) - Damping force at 0.1 m/s, rebound/compression, N - 1515/456 Nissan Skyline GT-R (BNR32) - Vehicle height (highest - lowest), mm - -30(0 - -68) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Rubber Inverted/Normal type - Normal Damper/Spring layout - Coilover Spring rate change at factory - Possible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 98 ( 10.0 ) Free height (mm) - 200 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 ) Damping force (Rebound/Damping)N* - 1515 / 456 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 43 / 56
REAR FEATURES Nissan Skyline GT-R (BNR32) - Spring rate N/mm (kgf/mm) - 78(8) Nissan Skyline GT-R (BNR32) - Spring free height, mm - 220(Barrel) Nissan Skyline GT-R (BNR32) - Damping force at 0.1 m/s, rebound/compression, N - 652/348 Nissan Skyline GT-R (BNR32) - Vehicle height (highest - lowest), mm - -15(0 - -63) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Rubber Inverted/Normal type - Normal Damper/Spring layout - Coilover Spring rate change at factory - Possible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 78 ( 8.0 ) Free height (mm) - 220 Spring type - Straight Barrel type Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 ) Damping force (Rebound/Damping)N* - 652 / 348 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 62 / 74
Remarks
Testing was confirmed on a standard vehicle.
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AN008.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
