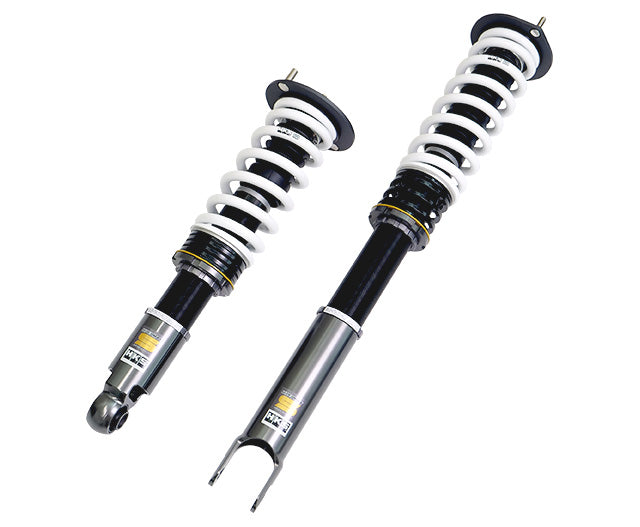

HKS Hipermax S Coilovers Nissan Skyline (ER34) 80330-AN005

80330-AN005

FITMENT
Nissan Skyline (ER34) 1998-2001

GENERAL FEATURES
Series - S
Nissan Skyline (ER34) - Engine - RB25DET / Not compatible with NA vehicles
Additional manufacturer specification data follows below.

FRONT FEATURES
Nissan Skyline (ER34) - Spring rate N/mm (kgf/mm) - 78(8)
Nissan Skyline (ER34) - Spring free height, mm - 220(Barrel)
Nissan Skyline (ER34) - Damping force at 0.1 m/s, rebound/compression, N - 966/299
Nissan Skyline (ER34) - Vehicle height (highest - lowest), mm - -41(-10 - -74)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 78 ( 8.0 )
Free height (mm) - 220
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 )
Damping force (Rebound/Damping)N* - 966 / 299
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 47 / 52

REAR FEATURES
Nissan Skyline (ER34) - Spring rate N/mm (kgf/mm) - 59(6)
Nissan Skyline (ER34) - Spring free height, mm - 250(Barrel)
Nissan Skyline (ER34) - Damping force at 0.1 m/s, rebound/compression, N - 501/333
Nissan Skyline (ER34) - Vehicle height (highest - lowest), mm - -31(-7 - -74)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Yes
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 59 ( 6.0 )
Free height (mm) - 250
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 501 / 333
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 71 / 98

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AN005.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
