GENERAL FEATURES Series - S Nissan Silvia (S15) - Engine - SR20DET / Front Upper Mount Pillow ball type Nissan Silvia (S15) - Engine - SR20DE / Front Upper Mount Pillow ball type Nissan Silvia (S14) - Engine - SR20DET / Front Upper Mount Pillow ball type. Vehicle height data is based on S15. Nissan Silvia (S14) - Engine - SR20DE / Front Upper Mount Pillow ball type. Vehicle height data is based on S15.
FRONT FEATURES Nissan Silvia (S15) - Spring rate N/mm (kgf/mm) - 59(6) Nissan Silvia (S15) - Spring free height, mm - 220(Barrel) Nissan Silvia (S15) - Damping force at 0.1 m/s, rebound/compression, N - 500/412 Nissan Silvia (S15) - Vehicle height (highest - lowest), mm - -47(0 - -65) Nissan Silvia (S14) - Spring rate N/mm (kgf/mm) - 59(6) Nissan Silvia (S14) - Spring free height, mm - 220(Barrel) Nissan Silvia (S14) - Damping force at 0.1 m/s, rebound/compression, N - 500/412 Nissan Silvia (S14) - Vehicle height (highest - lowest), mm - -47(0 - -65)
REAR FEATURES Nissan Silvia (S15) - Spring rate N/mm (kgf/mm) - 49(5) Nissan Silvia (S15) - Spring free height, mm - 250(Barrel) Nissan Silvia (S15) - Damping force at 0.1 m/s, rebound/compression, N - 365/284 Nissan Silvia (S15) - Vehicle height (highest - lowest), mm - -45(-12 - -85) Nissan Silvia (S14) - Spring rate N/mm (kgf/mm) - 49(5) Nissan Silvia (S14) - Spring free height, mm - 250(Barrel) Nissan Silvia (S14) - Damping force at 0.1 m/s, rebound/compression, N - 365/284 Nissan Silvia (S14) - Vehicle height (highest - lowest), mm - -45(-12 - -85)

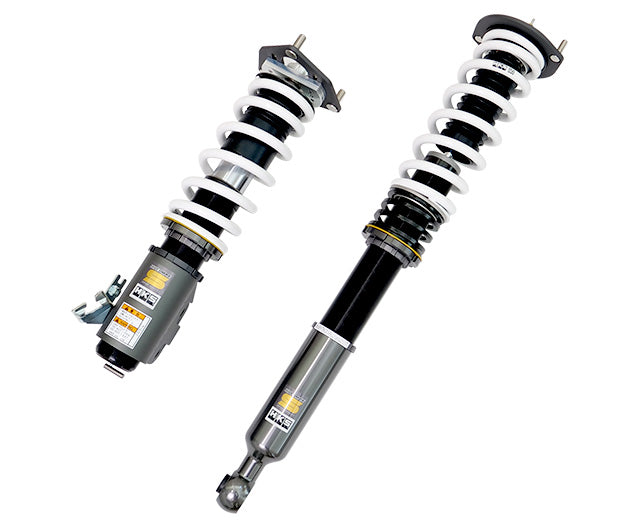

PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AN002P.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
