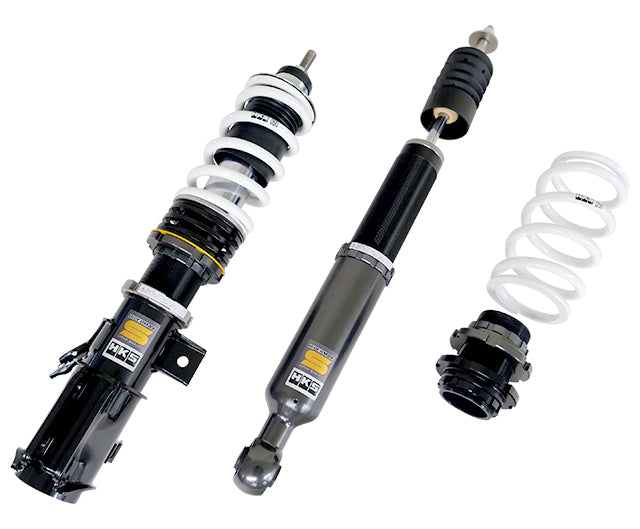

HKS Hipermax S Coilovers Nissan Note Nismo S (E12 KAI) 80330-AN013
2 011 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80330-AN013
FITMENT Nissan Note Nismo S (E12 KAI) 2014-2021
GENERAL FEATURES Series - S Full Kit Spring Rate F/R - F=59(6)/r=49(5) Nissan Note Nismo S (E12 KAI) - Engine - HR16DE / Developed with NISMO S MT. Additional manufacturer specification data follows below.
FRONT FEATURES Nissan Note Nismo S (E12 KAI) - Spring free height, mm - 170 Nissan Note Nismo S (E12 KAI) - Damping force at 0.1 m/s, rebound/compression, N - 447/294 Nissan Note Nismo S (E12 KAI) - Vehicle height (highest - lowest), mm - -24(0 - -51) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Stock Inverted/Normal type - Inverted Damper/Spring layout - Coilover Spring rate change at factory - Possible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 59 ( 6.0 ) Free height (mm) - 170 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - +10 ( 1 ) Damping force (Rebound/Damping)N* - 447 / 294 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 53 / 60
REAR FEATURES Nissan Note Nismo S (E12 KAI) - Spring free height, mm - 170(Barrel) Nissan Note Nismo S (E12 KAI) - Damping force at 0.1 m/s, rebound/compression, N - 270/167 Nissan Note Nismo S (E12 KAI) - Vehicle height (highest - lowest), mm - -24(0 - -55) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Stock Inverted/Normal type - Normal Damper/Spring layout - Separated Spring rate change at factory - Impossible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - Not fitted / not applicable Spring rate N/mm(kgf/mm) - 49 ( 5.0 ) Free height (mm) - 170 Spring type - Straight Barrel type Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable Damping force (Rebound/Damping)N* - 270 / 167 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 53 / 76
Remarks
Developed with NISMO S MT.
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AN013.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
