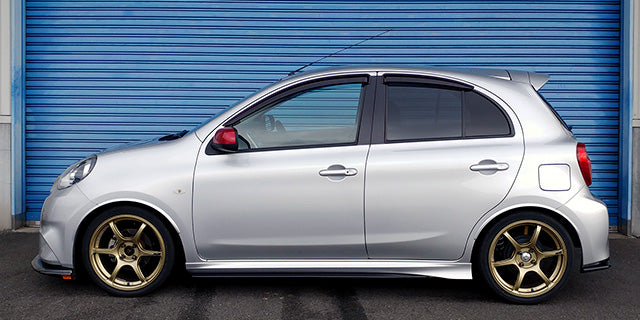

HKS Hipermax S Coilovers Nissan March Nismo S (K13 KAI) 80330-AN014

80330-AN014

FITMENT
Nissan March Nismo S (K13 KAI) 2013-2022

GENERAL FEATURES
Series - S
Nissan March Nismo S (K13 KAI) - Engine - HR15DE / Make to order item

FRONT FEATURES
Nissan March Nismo S (K13 KAI) - Spring rate N/mm (kgf/mm) - 49(5)
Nissan March Nismo S (K13 KAI) - Spring free height, mm - 170(Barrel)
Nissan March Nismo S (K13 KAI) - Damping force at 0.1 m/s, rebound/compression, N - 441/363
Nissan March Nismo S (K13 KAI) - Vehicle height (highest - lowest), mm - 0(0 - -50)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Stock
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 49 ( 5.0 )
Free height (mm) - 170
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - +20 ( 2 )
Damping force (Rebound/Damping)N* - 441 / 363
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 55 / 51

REAR FEATURES
Nissan March Nismo S (K13 KAI) - Spring rate N/mm (kgf/mm) - 49(5)
Nissan March Nismo S (K13 KAI) - Spring free height, mm - 170(Barrel)
Nissan March Nismo S (K13 KAI) - Damping force at 0.1 m/s, rebound/compression, N - 265/206
Nissan March Nismo S (K13 KAI) - Vehicle height (highest - lowest), mm - 0(0 - -58)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Stock
Inverted/Normal type - Normal
Damper/Spring layout - Separated
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 49 ( 5.0 )
Free height (mm) - 170
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 265 / 206
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 60 / 76

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AN014.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
