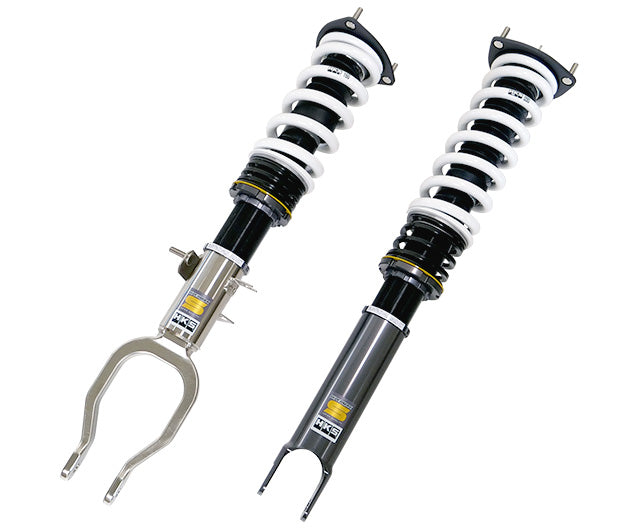

HKS Hipermax S Coilovers Nissan GT-R (R35) 80330-AN001

80330-AN001

FITMENT
Nissan GT-R (R35) 2007-

GENERAL FEATURES
Series - S
Nissan GT-R (R35) - Engine - VR38DETT

FRONT FEATURES
Nissan GT-R (R35) - Spring rate N/mm (kgf/mm) - 157(16)
Nissan GT-R (R35) - Spring free height, mm - 200
Nissan GT-R (R35) - Damping force at 0.1 m/s, rebound/compression, N - 1442/456
Nissan GT-R (R35) - Vehicle height (highest - lowest), mm - -12(0 - -76)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 157 ( 16.0 )
Free height (mm) - 200
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 1442 / 456
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 49 / 50

REAR FEATURES
Nissan GT-R (R35) - Spring rate N/mm (kgf/mm) - 88(9)
Nissan GT-R (R35) - Spring free height, mm - 250
Nissan GT-R (R35) - Damping force at 0.1 m/s, rebound/compression, N - 834/358
Nissan GT-R (R35) - Vehicle height (highest - lowest), mm - -13(0 - -61)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Yes
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 88 ( 9.0 )
Free height (mm) - 250
Spring type - Straight
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 834 / 358
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 78 / 81

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AN001.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.

Manufacturer product details.
