GENERAL FEATURES Series - S Nissan Elgrand (PE52) - Engine - VQ35DE / 2WD Nissan Elgrand (PNE52) - Engine - VQ35DE / 4WD, Vehicle height data is based on TNE52(QR25DE). Nissan Elgrand (TE52) - Engine - QR25DE / 2WD Nissan Elgrand (TNE52) - Engine - QR25DE / 4WD
FRONT FEATURES Nissan Elgrand (PE52) - Spring rate N/mm (kgf/mm) - 69(7) Nissan Elgrand (PE52) - Spring free height, mm - 220(Barrel) Nissan Elgrand (PE52) - Damping force at 0.1 m/s, rebound/compression, N - 540/604 Nissan Elgrand (PE52) - Vehicle height (highest - lowest), mm - -49(-12 - -68) Nissan Elgrand (PNE52) - Spring rate N/mm (kgf/mm) - 69(7) Nissan Elgrand (PNE52) - Spring free height, mm - 220(Barrel) Nissan Elgrand (PNE52) - Damping force at 0.1 m/s, rebound/compression, N - 540/604 Nissan Elgrand (PNE52) - Vehicle height (highest - lowest), mm - -33(-8 - -68) Nissan Elgrand (TE52) - Spring rate N/mm (kgf/mm) - 69(7) Nissan Elgrand (TE52) - Spring free height, mm - 220(Barrel) Nissan Elgrand (TE52) - Damping force at 0.1 m/s, rebound/compression, N - 540/604 Nissan Elgrand (TE52) - Vehicle height (highest - lowest), mm - -40(-10 - -68) Nissan Elgrand (TNE52) - Spring rate N/mm (kgf/mm) - 69(7) Nissan Elgrand (TNE52) - Spring free height, mm - 220(Barrel) Nissan Elgrand (TNE52) - Damping force at 0.1 m/s, rebound/compression, N - 540/604 Nissan Elgrand (TNE52) - Vehicle height (highest - lowest), mm - -33(-8 - -68)
REAR FEATURES Nissan Elgrand (PE52) - Spring rate N/mm (kgf/mm) - 105(10.7) Nissan Elgrand (PE52) - Spring free height, mm - Special Nissan Elgrand (PE52) - Damping force at 0.1 m/s, rebound/compression, N - 662/368 Nissan Elgrand (PE52) - Vehicle height (highest - lowest), mm - -45(-14 - -84) Nissan Elgrand (PNE52) - Spring rate N/mm (kgf/mm) - 105(10.7) Nissan Elgrand (PNE52) - Spring free height, mm - Special Nissan Elgrand (PNE52) - Damping force at 0.1 m/s, rebound/compression, N - 662/368 Nissan Elgrand (PNE52) - Vehicle height (highest - lowest), mm - -40(-9 - -74) Nissan Elgrand (TE52) - Spring rate N/mm (kgf/mm) - 105(10.7) Nissan Elgrand (TE52) - Spring free height, mm - Special Nissan Elgrand (TE52) - Damping force at 0.1 m/s, rebound/compression, N - 662/368 Nissan Elgrand (TE52) - Vehicle height (highest - lowest), mm - -39(-8 - -77) Nissan Elgrand (TNE52) - Spring rate N/mm (kgf/mm) - 105(10.7) Nissan Elgrand (TNE52) - Spring free height, mm - Special Nissan Elgrand (TNE52) - Damping force at 0.1 m/s, rebound/compression, N - 662/368 Nissan Elgrand (TNE52) - Vehicle height (highest - lowest), mm - -40(-9 - -74)

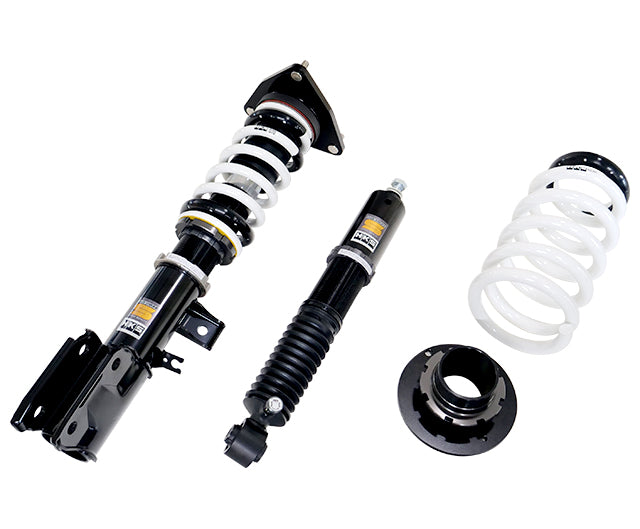

PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AN023.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
