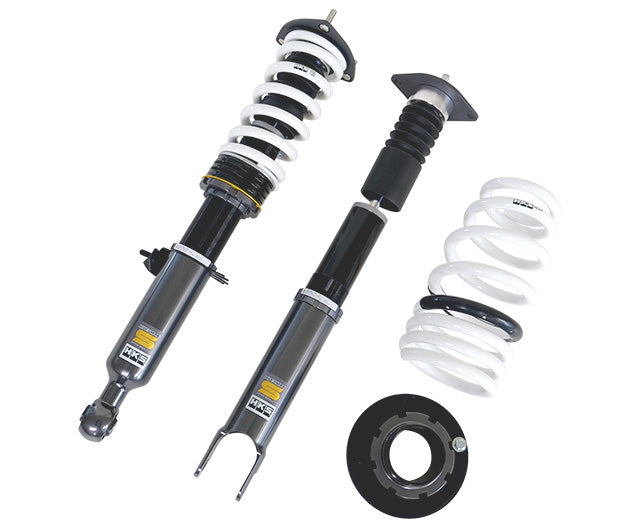

HKS Hipermax S Coilovers Nissan Fairlady Z (Z) (Z34) 80330-AN009
1 925 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80330-AN009
FITMENT Nissan Fairlady Z (Z) (Z34) 2008-2021
GENERAL FEATURES Series - S Nissan Fairlady Z (Z) (Z34) - Engine - VQ37VHR
FRONT FEATURES Nissan Fairlady Z (Z) (Z34) - Spring rate N/mm (kgf/mm) - 98(10) Nissan Fairlady Z (Z) (Z34) - Spring free height, mm - 200 Nissan Fairlady Z (Z) (Z34) - Damping force at 0.1 m/s, rebound/compression, N - 1158/456 Nissan Fairlady Z (Z) (Z34) - Vehicle height (highest - lowest), mm - -20(0 - -43) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Rubber Inverted/Normal type - Normal Damper/Spring layout - Coilover Spring rate change at factory - Possible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 98 ( 10.0 ) Free height (mm) - 200 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - ±20 ( 2 ) Damping force (Rebound/Damping)N* - 1158 / 456 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 55 / 44
REAR FEATURES Nissan Fairlady Z (Z) (Z34) - Spring rate N/mm (kgf/mm) - 88(9) Nissan Fairlady Z (Z) (Z34) - Spring free height, mm - Special Nissan Fairlady Z (Z) (Z34) - Damping force at 0.1 m/s, rebound/compression, N - 642/343 Nissan Fairlady Z (Z) (Z34) - Vehicle height (highest - lowest), mm - -20(0 - -43) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Rubber Inverted/Normal type - Normal Damper/Spring layout - Separated Spring rate change at factory - Impossible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - Not fitted / not applicable Spring rate N/mm(kgf/mm) - 88 ( 9.0 ) Free height (mm) - Not fitted / not applicable Spring type - Special shape Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable Damping force (Rebound/Damping)N* - 642 / 343 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 79 / 70
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AN009.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
