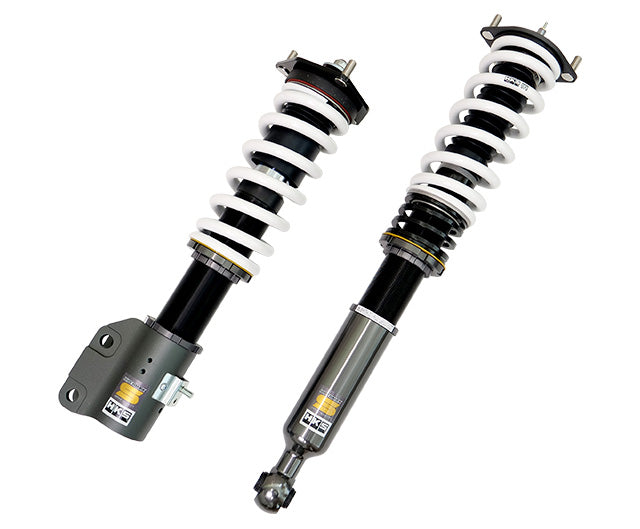

HKS Hipermax S Coilovers Mitsubishi Lancer Evolution X (CZ4A) 80330-AM001

80330-AM001

FITMENT
Mitsubishi Lancer Evolution X (CZ4A) 2007-2015

GENERAL FEATURES
Series - S
Mitsubishi Lancer Evolution X (CZ4A) - Engine - 4B11

FRONT FEATURES
Mitsubishi Lancer Evolution X (CZ4A) - Spring rate N/mm (kgf/mm) - 98(10)
Mitsubishi Lancer Evolution X (CZ4A) - Spring free height, mm - 220(Barrel)
Mitsubishi Lancer Evolution X (CZ4A) - Damping force at 0.1 m/s, rebound/compression, N - 898/481
Mitsubishi Lancer Evolution X (CZ4A) - Vehicle height (highest - lowest), mm - -36(-19 - -60)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Inverted
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 98 ( 10.0 )
Free height (mm) - 220
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - -20 ( 2 )
Damping force (Rebound/Damping)N* - 898 / 481
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 38 / 61

REAR FEATURES
Mitsubishi Lancer Evolution X (CZ4A) - Spring rate N/mm (kgf/mm) - (7)
Mitsubishi Lancer Evolution X (CZ4A) - Spring free height, mm - 220(Barrel)
Mitsubishi Lancer Evolution X (CZ4A) - Damping force at 0.1 m/s, rebound/compression, N - 677/348
Mitsubishi Lancer Evolution X (CZ4A) - Vehicle height (highest - lowest), mm - -19(0 - -57)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Possible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 69 ( 7.0 )
Free height (mm) - 220
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - -20 ( 2 )
Damping force (Rebound/Damping)N* - 677 / 348
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 65 / 71

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AM001.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
