GENERAL FEATURES Series - S Mitsubishi Lancer Evolution V (CP9A) - Engine - 4G63 / Front Upper Mount Pillow ball type Mitsubishi Lancer Evolution Ⅵ (CP9A) - Engine - 4G63 / Front Upper Mount Pillow ball type
FRONT FEATURES Mitsubishi Lancer Evolution V (CP9A) - Spring rate N/mm (kgf/mm) - 69(7) Mitsubishi Lancer Evolution V (CP9A) - Spring free height, mm - 200(Barrel) Mitsubishi Lancer Evolution V (CP9A) - Damping force at 0.1 m/s, rebound/compression, N - 868/515 Mitsubishi Lancer Evolution V (CP9A) - Vehicle height (highest - lowest), mm - -45(-1 - -74) Mitsubishi Lancer Evolution Ⅵ (CP9A) - Spring rate N/mm (kgf/mm) - 69(7) Mitsubishi Lancer Evolution Ⅵ (CP9A) - Spring free height, mm - 200(Barrel) Mitsubishi Lancer Evolution Ⅵ (CP9A) - Damping force at 0.1 m/s, rebound/compression, N - 868/515 Mitsubishi Lancer Evolution Ⅵ (CP9A) - Vehicle height (highest - lowest), mm - -45(-1 - -74)
REAR FEATURES Mitsubishi Lancer Evolution V (CP9A) - Spring rate N/mm (kgf/mm) - 59(6) Mitsubishi Lancer Evolution V (CP9A) - Spring free height, mm - 200 Mitsubishi Lancer Evolution V (CP9A) - Damping force at 0.1 m/s, rebound/compression, N - 682/348 Mitsubishi Lancer Evolution V (CP9A) - Vehicle height (highest - lowest), mm - -26(-4 - -64) Mitsubishi Lancer Evolution Ⅵ (CP9A) - Spring rate N/mm (kgf/mm) - 59(6) Mitsubishi Lancer Evolution Ⅵ (CP9A) - Spring free height, mm - 200 Mitsubishi Lancer Evolution Ⅵ (CP9A) - Damping force at 0.1 m/s, rebound/compression, N - 682/348 Mitsubishi Lancer Evolution Ⅵ (CP9A) - Vehicle height (highest - lowest), mm - -26(-4 - -64)

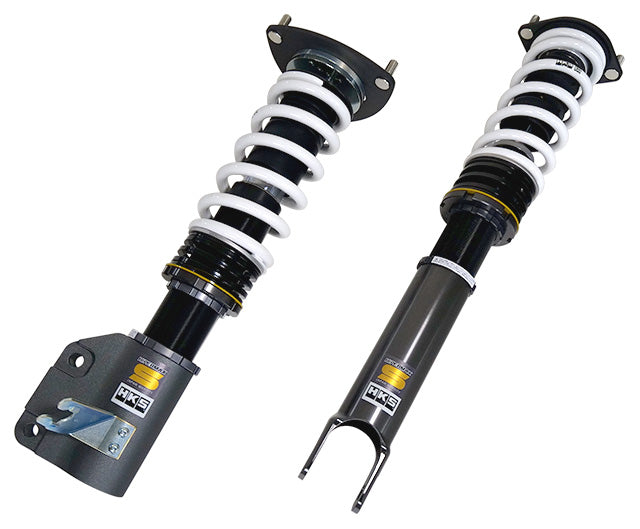

PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AM003P.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
