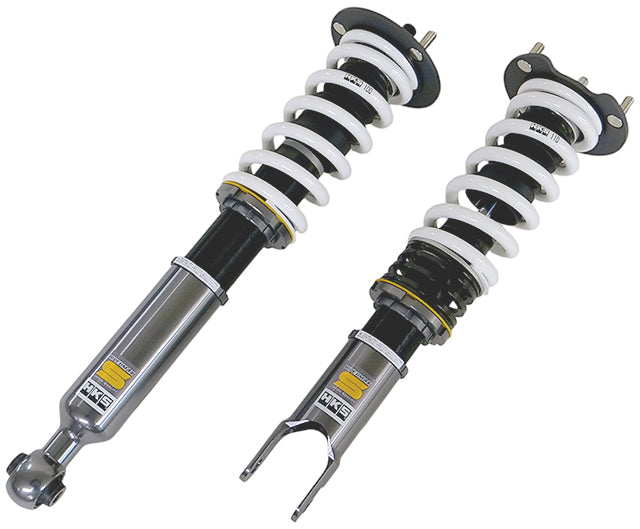

HKS Hipermax S Coilovers Mazda RX-7 (FD3S) 80330-AZ002
1 878 €
/ per
Maksud sisalduvad hinnas.
Not in stock, available to order
Product description
80330-AZ002
FITMENT Mazda RX-7 (FD3S) 1991-2002
GENERAL FEATURES Series - S Mazda RX-7 (FD3S) - Engine - 13B-REW
FRONT FEATURES Mazda RX-7 (FD3S) - Spring rate N/mm (kgf/mm) - 98(10) Mazda RX-7 (FD3S) - Spring free height, mm - 200 Mazda RX-7 (FD3S) - Damping force at 0.1 m/s, rebound/compression, N - 1398/505 Mazda RX-7 (FD3S) - Vehicle height (highest - lowest), mm - -20(-1 - -36) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Rubber Inverted/Normal type - Normal Damper/Spring layout - Coilover Spring rate change at factory - Possible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - Not fitted / not applicable Spring rate N/mm(kgf/mm) - 98 ( 10.0 ) Free height (mm) - 200 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - ±10 ( 1 ) Damping force (Rebound/Damping)N* - 1398 / 505 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 43 / 53
REAR FEATURES Mazda RX-7 (FD3S) - Spring rate N/mm (kgf/mm) - 108(11) Mazda RX-7 (FD3S) - Spring free height, mm - 200 Mazda RX-7 (FD3S) - Damping force at 0.1 m/s, rebound/compression, N - 946/392 Mazda RX-7 (FD3S) - Vehicle height (highest - lowest), mm - -24(0 - -67) Damping force adjustment - 30 steps Base valve - Not fitted / not applicable Height adjustable lower bracket - Yes Upper mount - Rubber Inverted/Normal type - Normal Damper/Spring layout - Coilover Spring rate change at factory - Possible Damping force adjustment with wire - Not fitted / not applicable Helper spring (Spring rate N/mm) - 〇 (19.8) Spring rate N/mm(kgf/mm) - 108 ( 11.0 ) Free height (mm) - 200 Spring type - Straight Recommended range to change spring rate N/mm(kgf/mm) - ±10 ( 1 ) Damping force (Rebound/Damping)N* - 946 / 392 Default position of dial - 15 Remaining damper stroke (Rebound/Damping)mm - 56 / 60
PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AZ002.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
