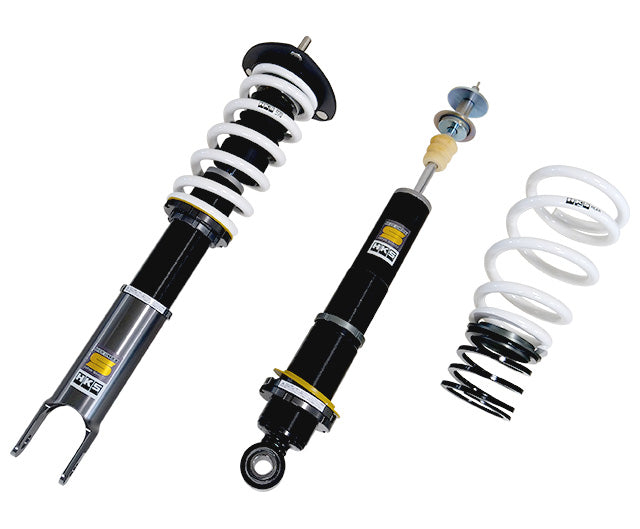

HKS Hipermax S Coilovers Mazda Roadster (NCEC) 80330-AZ006

80330-AZ006

FITMENT
Mazda Roadster (NCEC) 2005-2015

GENERAL FEATURES
Series - S
Mazda Roadster (NCEC) - Engine - LF-VE / A vehicle with the convertible top is not confirmed.
Additional manufacturer specification data follows below.

FRONT FEATURES
Mazda Roadster (NCEC) - Spring rate N/mm (kgf/mm) - 69(7)
Mazda Roadster (NCEC) - Spring free height, mm - 200(Barrel)
Mazda Roadster (NCEC) - Damping force at 0.1 m/s, rebound/compression, N - 1608/530
Mazda Roadster (NCEC) - Vehicle height (highest - lowest), mm - -22(0 - -59)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Rubber
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - Not fitted / not applicable
Spring rate N/mm(kgf/mm) - 69 ( 7.0 )
Free height (mm) - 200
Spring type - Straight Barrel type
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 1608 / 530
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 44 / 55

REAR FEATURES
Mazda Roadster (NCEC) - Spring rate N/mm (kgf/mm) - 59(6)
Mazda Roadster (NCEC) - Spring free height, mm - Special
Mazda Roadster (NCEC) - Damping force at 0.1 m/s, rebound/compression, N - 382/363
Mazda Roadster (NCEC) - Vehicle height (highest - lowest), mm - -27(0 - -55)
Damping force adjustment - 30 steps
Base valve - Not fitted / not applicable
Height adjustable lower bracket - Yes
Upper mount - Stock
Inverted/Normal type - Normal
Damper/Spring layout - Coilover
Spring rate change at factory - Impossible
Damping force adjustment with wire - Not fitted / not applicable
Helper spring (Spring rate N/mm) - 〇 (19.8)
Spring rate N/mm(kgf/mm) - 59 ( 6.0 )
Free height (mm) - Not fitted / not applicable
Spring type - Special shape
Recommended range to change spring rate N/mm(kgf/mm) - Not fitted / not applicable
Damping force (Rebound/Damping)N* - 382 / 363
Default position of dial - 15
Remaining damper stroke (Rebound/Damping)mm - 65 / 51

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AZ006.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
