GENERAL FEATURES Series - S Mazda Roadster (NB8C) - Engine - BP-ZE Mazda Roadster (NB6C) - Engine - B6-ZE Mazda Roadster (NA8C) - Engine - BP-ZE Mazda Roadster (NA6CE) - Engine - B6-ZE
FRONT FEATURES Mazda Roadster (NB8C) - Spring rate N/mm (kgf/mm) - 59(6) Mazda Roadster (NB8C) - Spring free height, mm - 220(Barrel) Mazda Roadster (NB8C) - Damping force at 0.1 m/s, rebound/compression, N - 412/427 Mazda Roadster (NB8C) - Vehicle height (highest - lowest), mm - -11(1 - -50) Mazda Roadster (NB6C) - Spring rate N/mm (kgf/mm) - 59(6) Mazda Roadster (NB6C) - Spring free height, mm - 220(Barrel) Mazda Roadster (NB6C) - Damping force at 0.1 m/s, rebound/compression, N - 412/427 Mazda Roadster (NB6C) - Vehicle height (highest - lowest), mm - -7(0 - -46) Mazda Roadster (NA8C) - Spring rate N/mm (kgf/mm) - 59(6) Mazda Roadster (NA8C) - Spring free height, mm - 220(Barrel) Mazda Roadster (NA8C) - Damping force at 0.1 m/s, rebound/compression, N - 412/427 Mazda Roadster (NA8C) - Vehicle height (highest - lowest), mm - -18(0 - -57) Mazda Roadster (NA6CE) - Spring rate N/mm (kgf/mm) - 59(6) Mazda Roadster (NA6CE) - Spring free height, mm - 220(Barrel) Mazda Roadster (NA6CE) - Damping force at 0.1 m/s, rebound/compression, N - 412/427 Mazda Roadster (NA6CE) - Vehicle height (highest - lowest), mm - -11(1 - -50)
REAR FEATURES Mazda Roadster (NB8C) - Spring rate N/mm (kgf/mm) - 69(7) Mazda Roadster (NB8C) - Spring free height, mm - 150 Mazda Roadster (NB8C) - Damping force at 0.1 m/s, rebound/compression, N - 265/476 Mazda Roadster (NB8C) - Vehicle height (highest - lowest), mm - -14(1 - -50) Mazda Roadster (NB6C) - Spring rate N/mm (kgf/mm) - 69(7) Mazda Roadster (NB6C) - Spring free height, mm - 150 Mazda Roadster (NB6C) - Damping force at 0.1 m/s, rebound/compression, N - 265/476 Mazda Roadster (NB6C) - Vehicle height (highest - lowest), mm - -11(0 - -47) Mazda Roadster (NA8C) - Spring rate N/mm (kgf/mm) - 69(7) Mazda Roadster (NA8C) - Spring free height, mm - 150 Mazda Roadster (NA8C) - Damping force at 0.1 m/s, rebound/compression, N - 265/476 Mazda Roadster (NA8C) - Vehicle height (highest - lowest), mm - -24(1 - -60) Mazda Roadster (NA6CE) - Spring rate N/mm (kgf/mm) - 69(7) Mazda Roadster (NA6CE) - Spring free height, mm - 150 Mazda Roadster (NA6CE) - Damping force at 0.1 m/s, rebound/compression, N - 265/476 Mazda Roadster (NA6CE) - Vehicle height (highest - lowest), mm - -23(0 - -59)

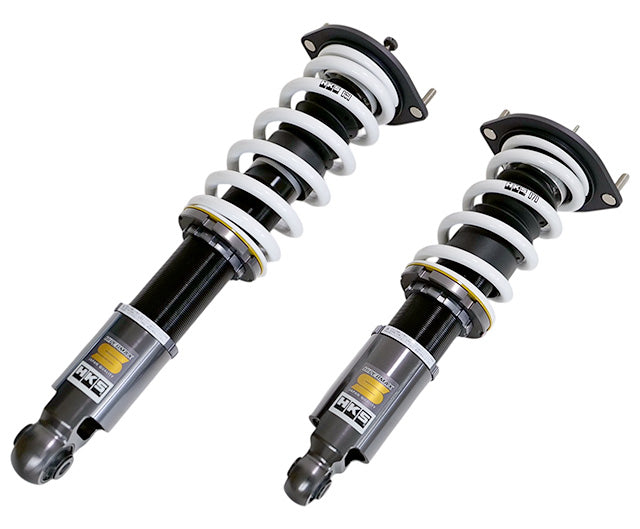

PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AZ008.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
