GENERAL FEATURES Series - S Full Kit Spring Rate F/R - F=49(5) / R=39(4) Mazda Cx-5 (KE2FW) - Engine - SH-VPTS / Make to order item Gasoline models unverified. Mazda Cx-5 (KE2AW) - Engine - SH-VPTS / Make to order item Gasoline models unverified.
FRONT FEATURES Mazda Cx-5 (KE2FW) - Spring free height, mm - 250(Barrel) Mazda Cx-5 (KE2FW) - Damping force at 0.1 m/s, rebound/compression, N - 495/201 Mazda Cx-5 (KE2FW) - Vehicle height (highest - lowest), mm - -33(-9 - -81) Mazda Cx-5 (KE2AW) - Spring free height, mm - 250(Barrel) Mazda Cx-5 (KE2AW) - Damping force at 0.1 m/s, rebound/compression, N - 495/201 Mazda Cx-5 (KE2AW) - Vehicle height (highest - lowest), mm - -36(-12 - -84)
REAR FEATURES Mazda Cx-5 (KE2FW) - Spring free height, mm - 250(Barrel) Mazda Cx-5 (KE2FW) - Damping force at 0.1 m/s, rebound/compression, N - 250/137 Mazda Cx-5 (KE2FW) - Vehicle height (highest - lowest), mm - -53(-21 - -91) Mazda Cx-5 (KE2AW) - Spring free height, mm - 250(Barrel) Mazda Cx-5 (KE2AW) - Damping force at 0.1 m/s, rebound/compression, N - 250/137 Mazda Cx-5 (KE2AW) - Vehicle height (highest - lowest), mm - -54(-22 - -92)

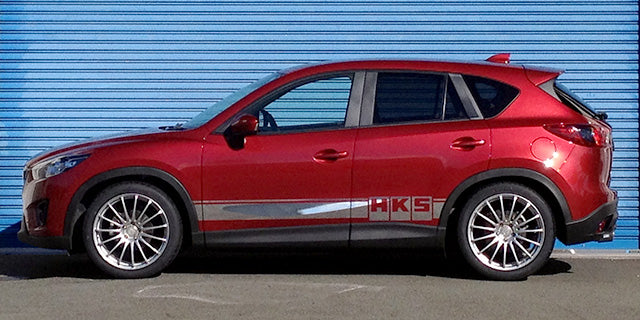

PURCHASED PARTS PACKAGE One HKS coilover set supplied under manufacturer part number 80330-AZ009.
NOTES Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
