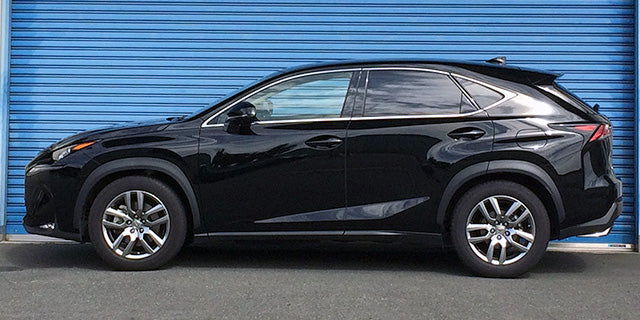

HKS Hipermax S Coilovers Toyota Harrier (ZSU60W) / Lexus Nx200T (AGZ10) 80330-AT046

80330-AT046

FITMENT
Toyota Harrier (ZSU60W) 2013-2020
Lexus Nx200T (AGZ10) 2014-2021

GENERAL FEATURES
Series - S
Toyota Harrier (ZSU60W) - Engine - 3ZR-FAE / Make to order item
Lexus Nx200T (AGZ10) - Engine - 8AR-FTS / Make to order item Height data is based on NX200t.

FRONT FEATURES
Toyota Harrier (ZSU60W) - Spring rate N/mm (kgf/mm) - 49(5)
Toyota Harrier (ZSU60W) - Spring free height, mm - 250(Barrel)
Toyota Harrier (ZSU60W) - Damping force at 0.1 m/s, rebound/compression, N - 402/167
Toyota Harrier (ZSU60W) - Vehicle height (highest - lowest), mm - -20(0 - -45)
Lexus Nx200T (AGZ10) - Spring rate N/mm (kgf/mm) - 49(5)
Lexus Nx200T (AGZ10) - Spring free height, mm - 250(Barrel)
Lexus Nx200T (AGZ10) - Damping force at 0.1 m/s, rebound/compression, N - 402/167
Lexus Nx200T (AGZ10) - Vehicle height (highest - lowest), mm - -31(0 - -56)

REAR FEATURES
Toyota Harrier (ZSU60W) - Spring rate N/mm (kgf/mm) - 59(6)
Toyota Harrier (ZSU60W) - Spring free height, mm - 220(Barrel)
Toyota Harrier (ZSU60W) - Damping force at 0.1 m/s, rebound/compression, N - 539/157
Toyota Harrier (ZSU60W) - Vehicle height (highest - lowest), mm - -30(-4 - -65)
Lexus Nx200T (AGZ10) - Spring rate N/mm (kgf/mm) - 59(6)
Lexus Nx200T (AGZ10) - Spring free height, mm - 220(Barrel)
Lexus Nx200T (AGZ10) - Damping force at 0.1 m/s, rebound/compression, N - 539/157
Lexus Nx200T (AGZ10) - Vehicle height (highest - lowest), mm - -26(0 - -61)

PURCHASED PARTS PACKAGE
One HKS coilover set supplied under manufacturer part number 80330-AT046.

NOTES
Follow the manufacturer installation instructions and the application notes above. Confirm supporting parts and any separately required components for the vehicle specification.
